Safe Passage Bridge

Safe Passage Bridge

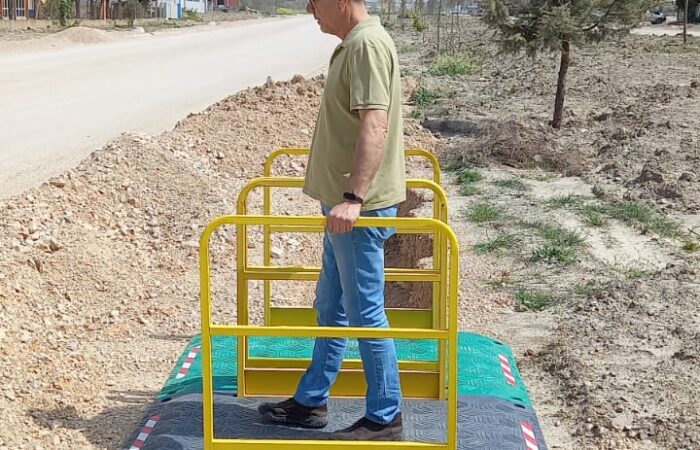

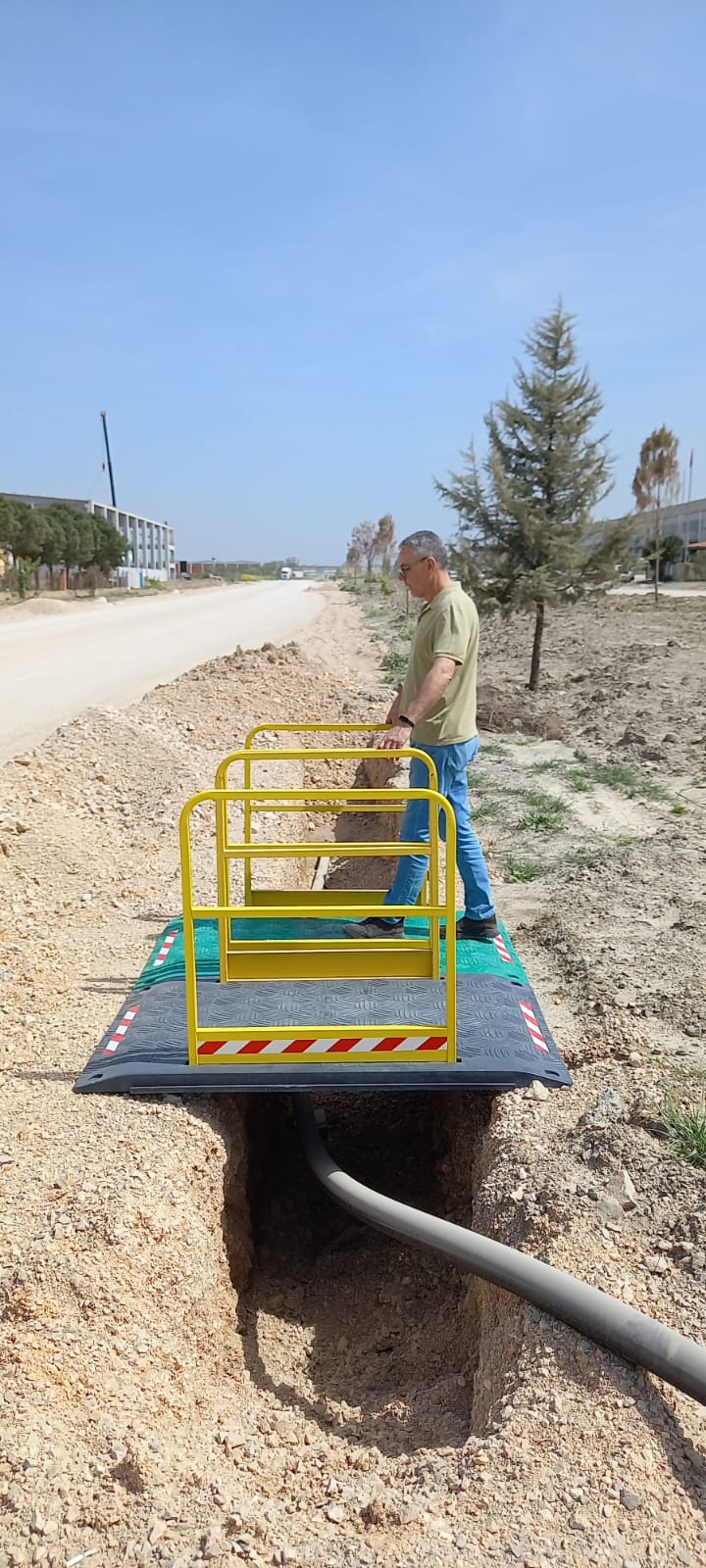

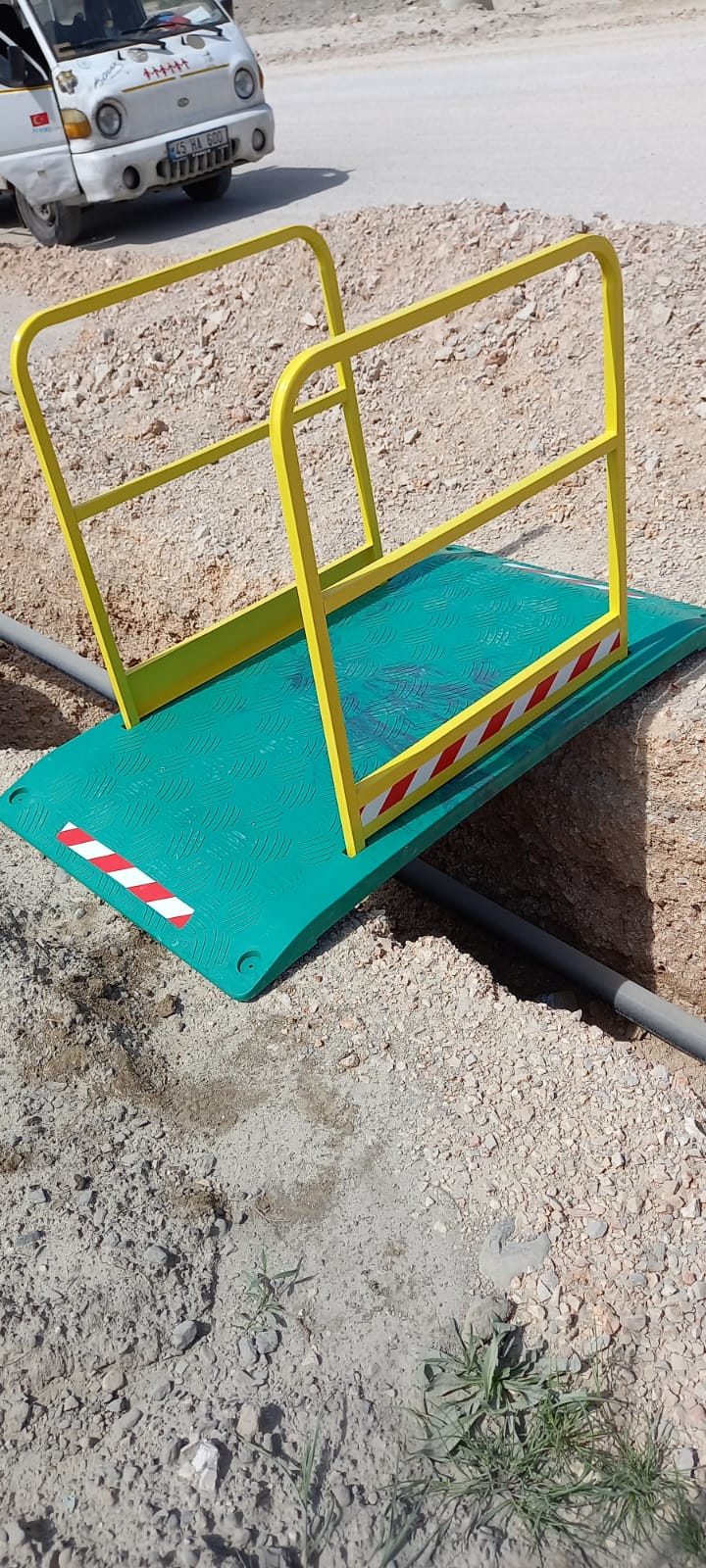

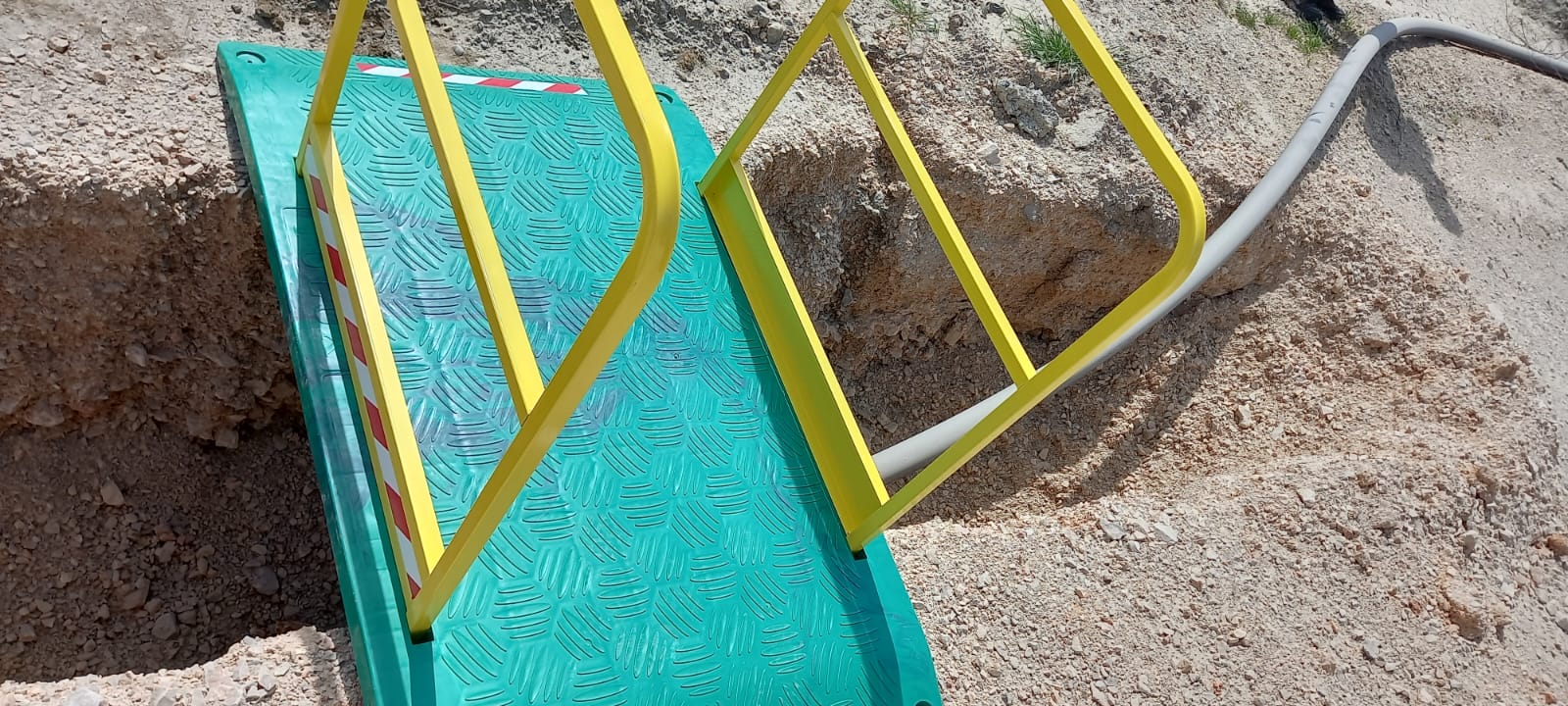

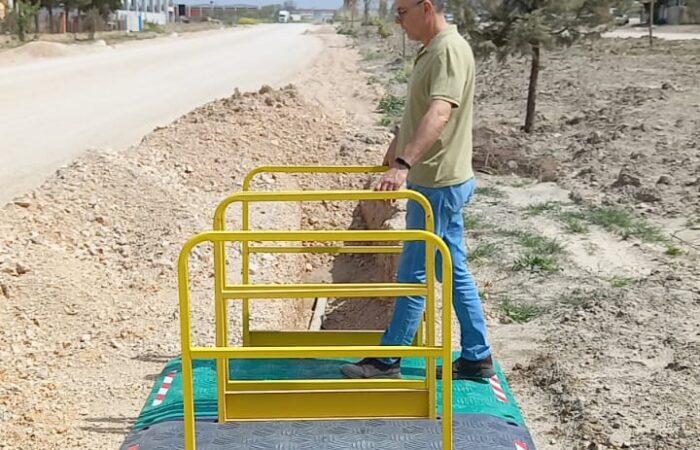

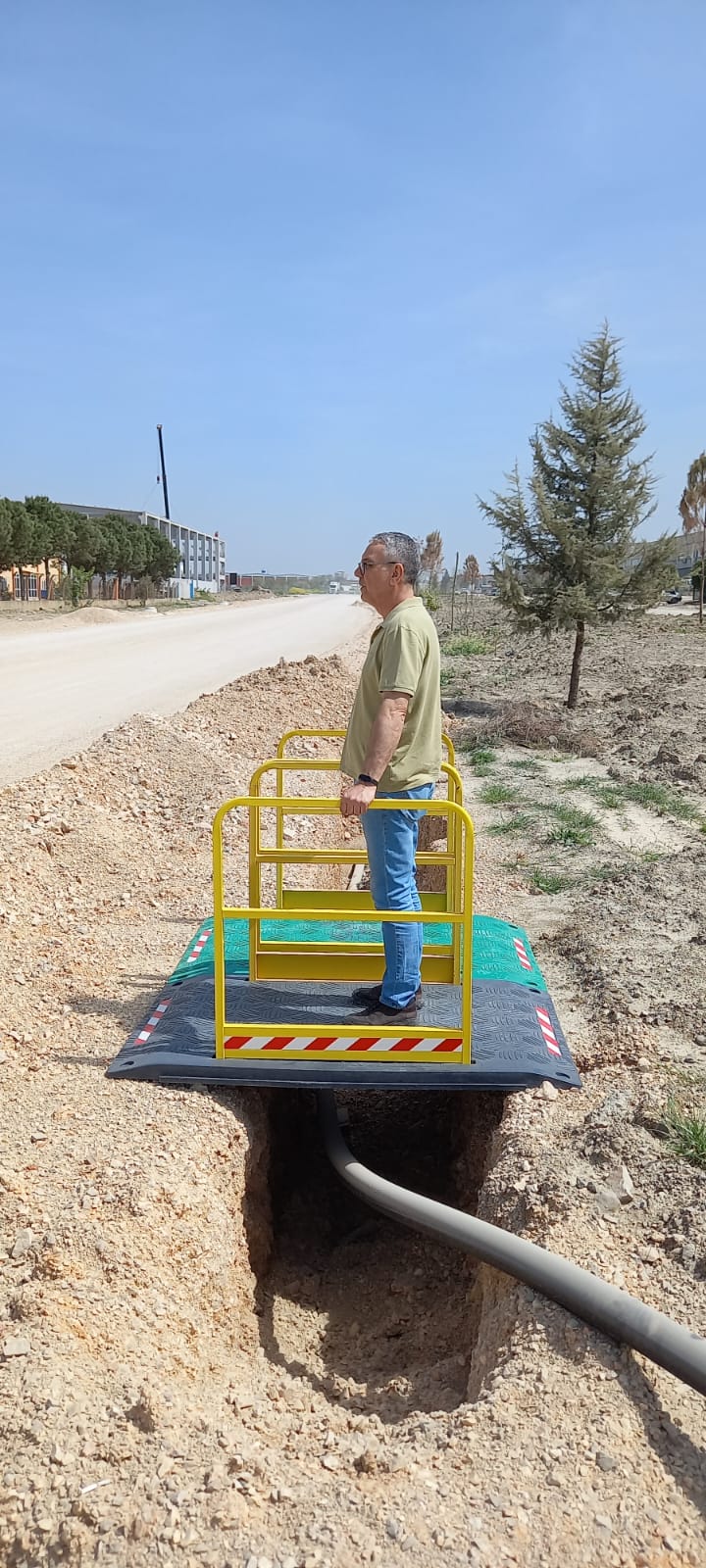

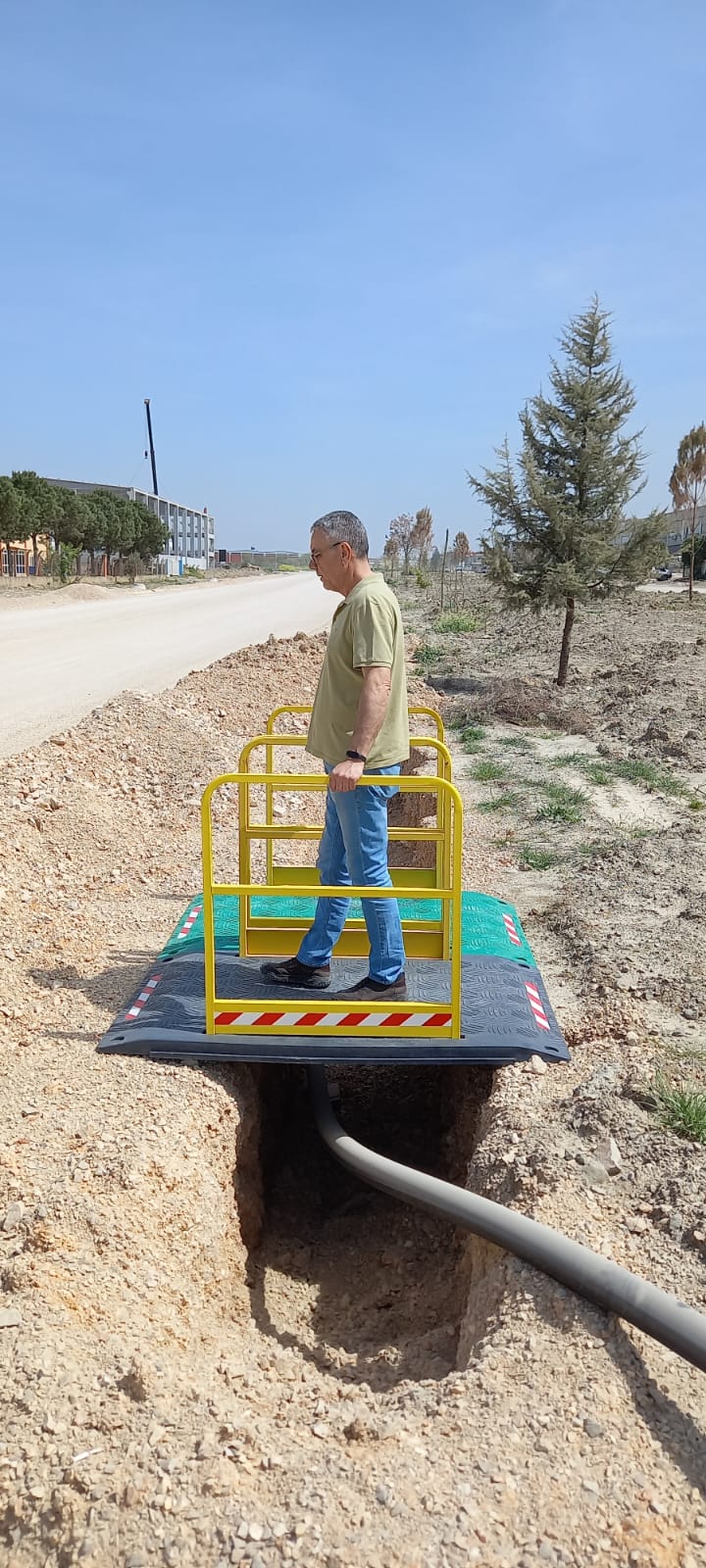

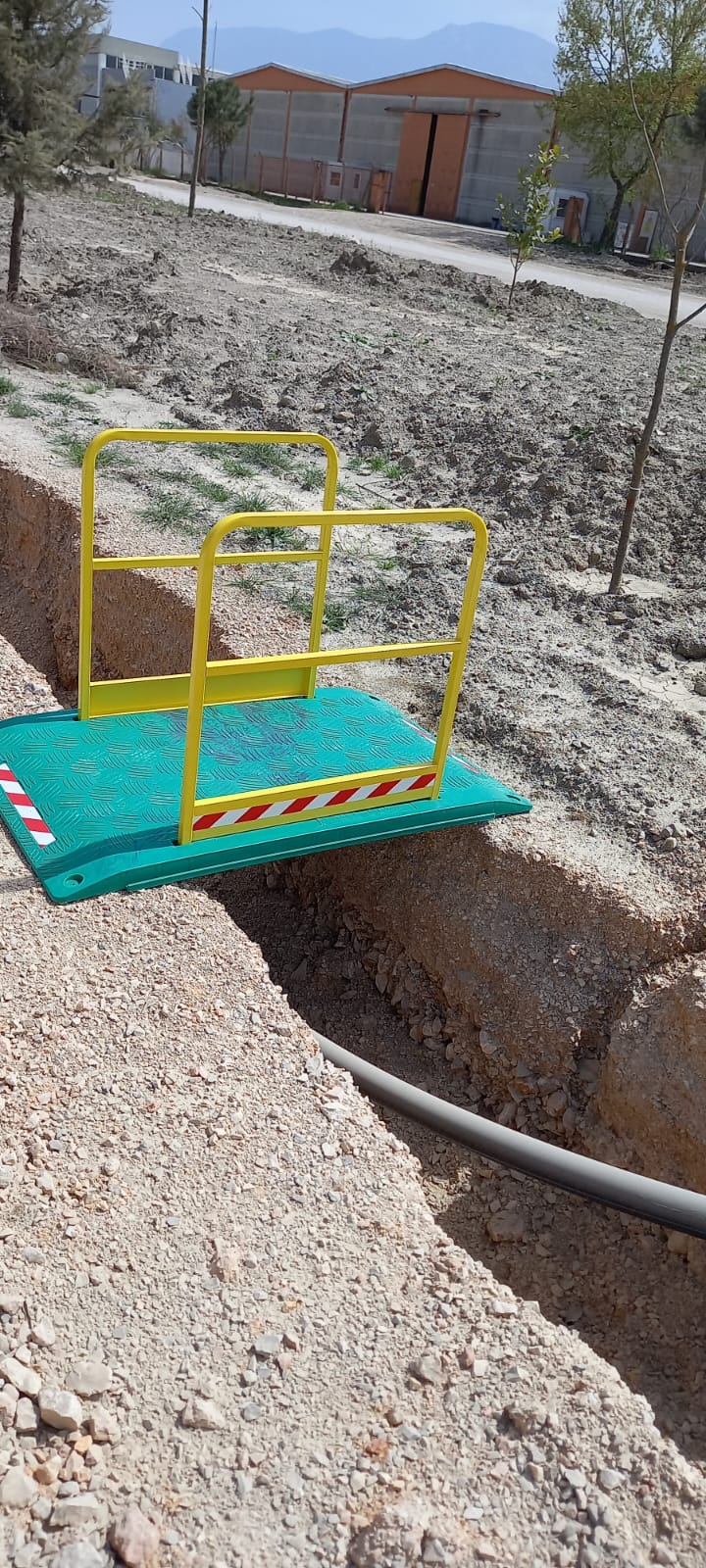

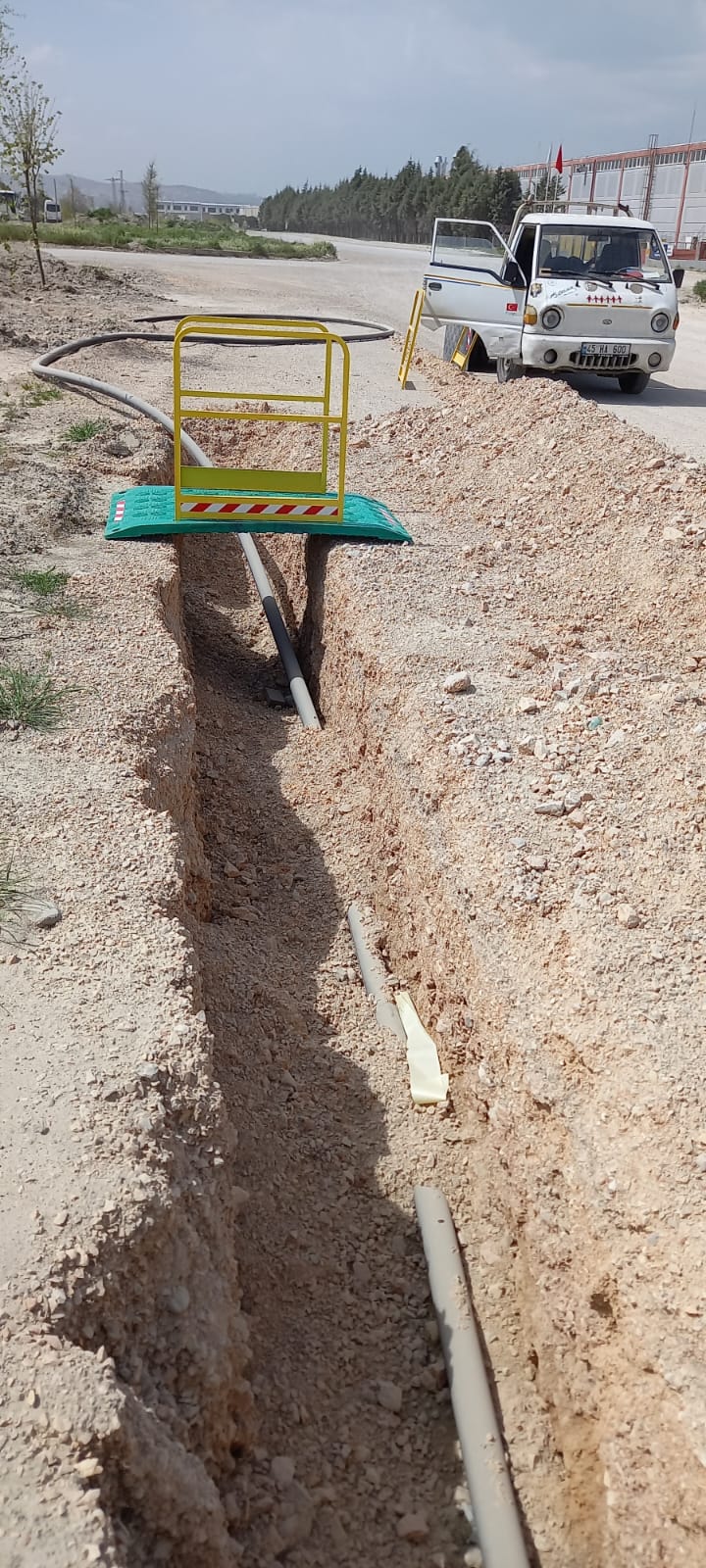

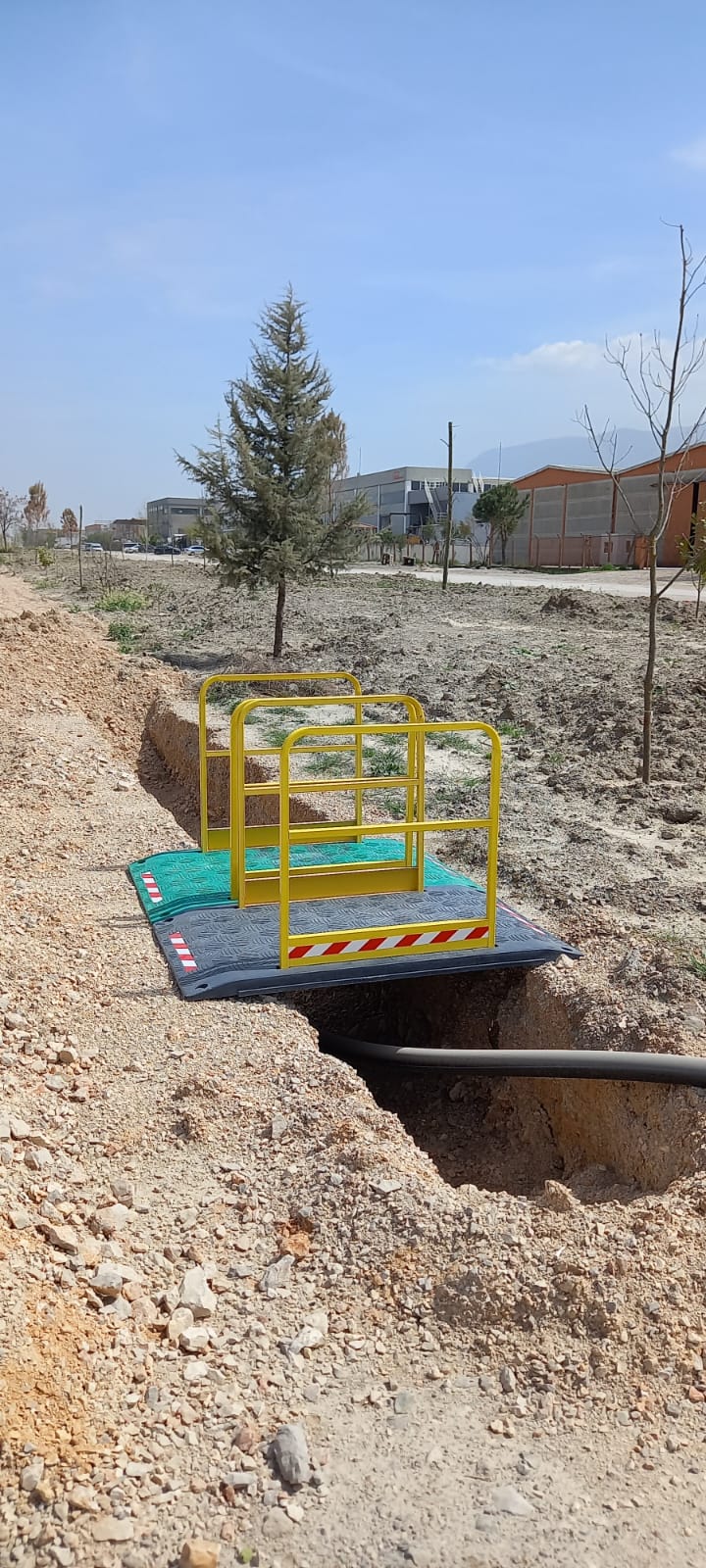

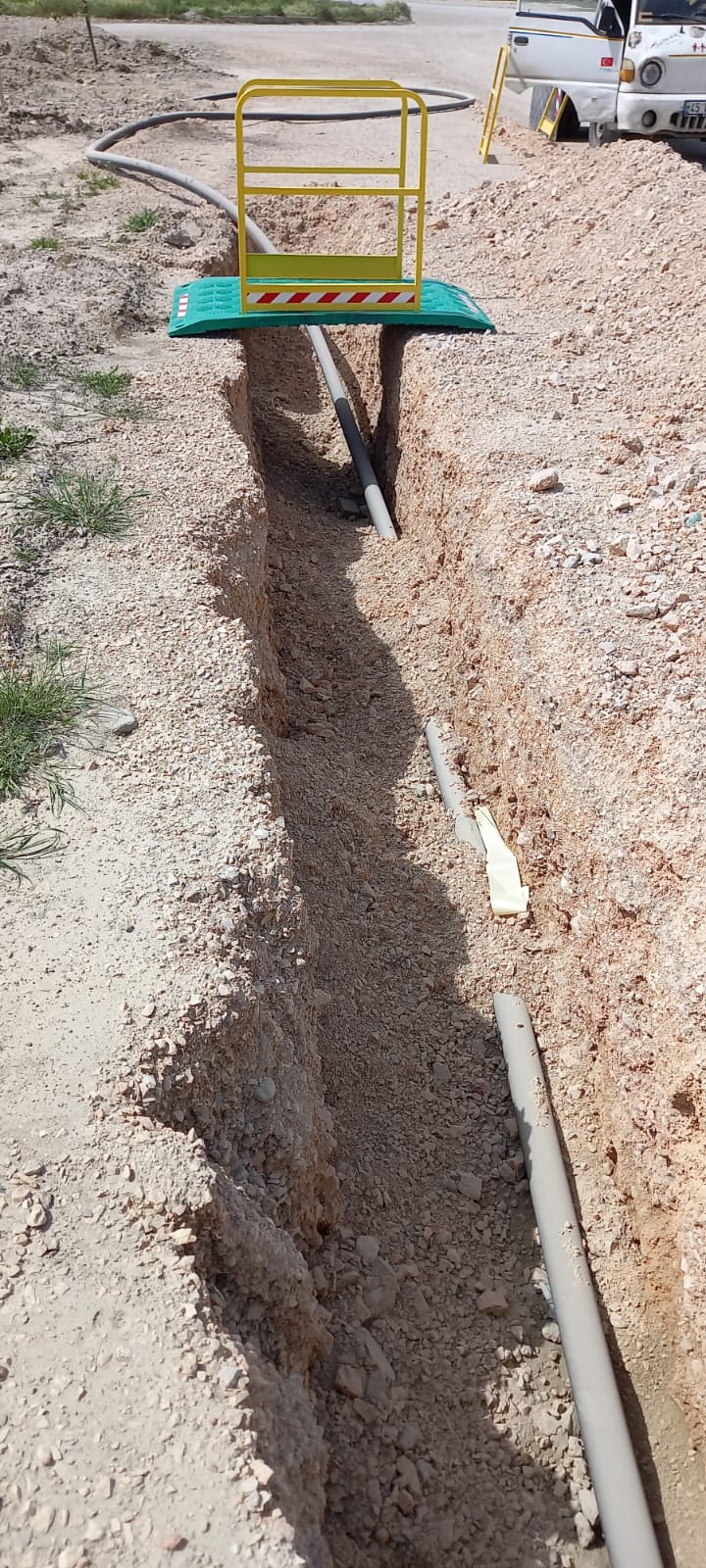

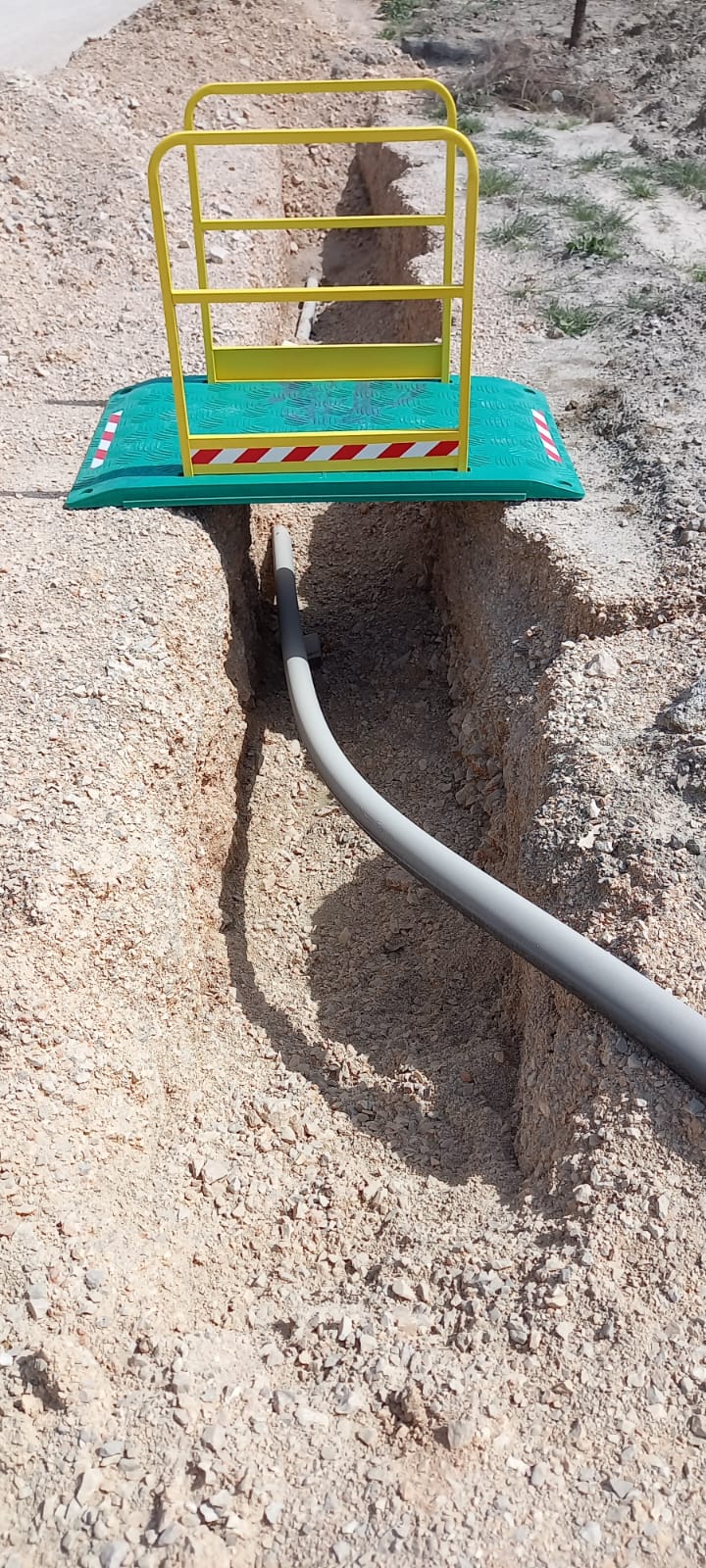

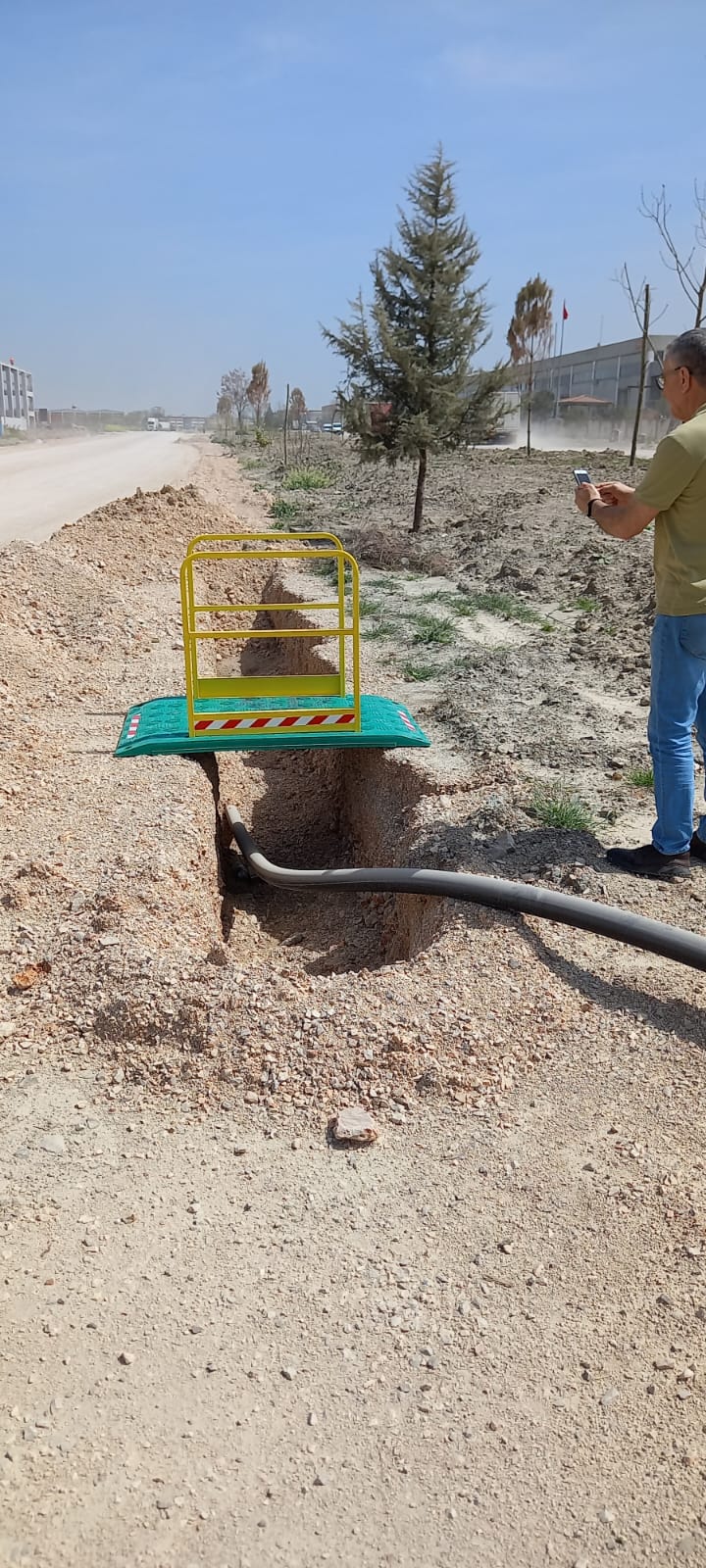

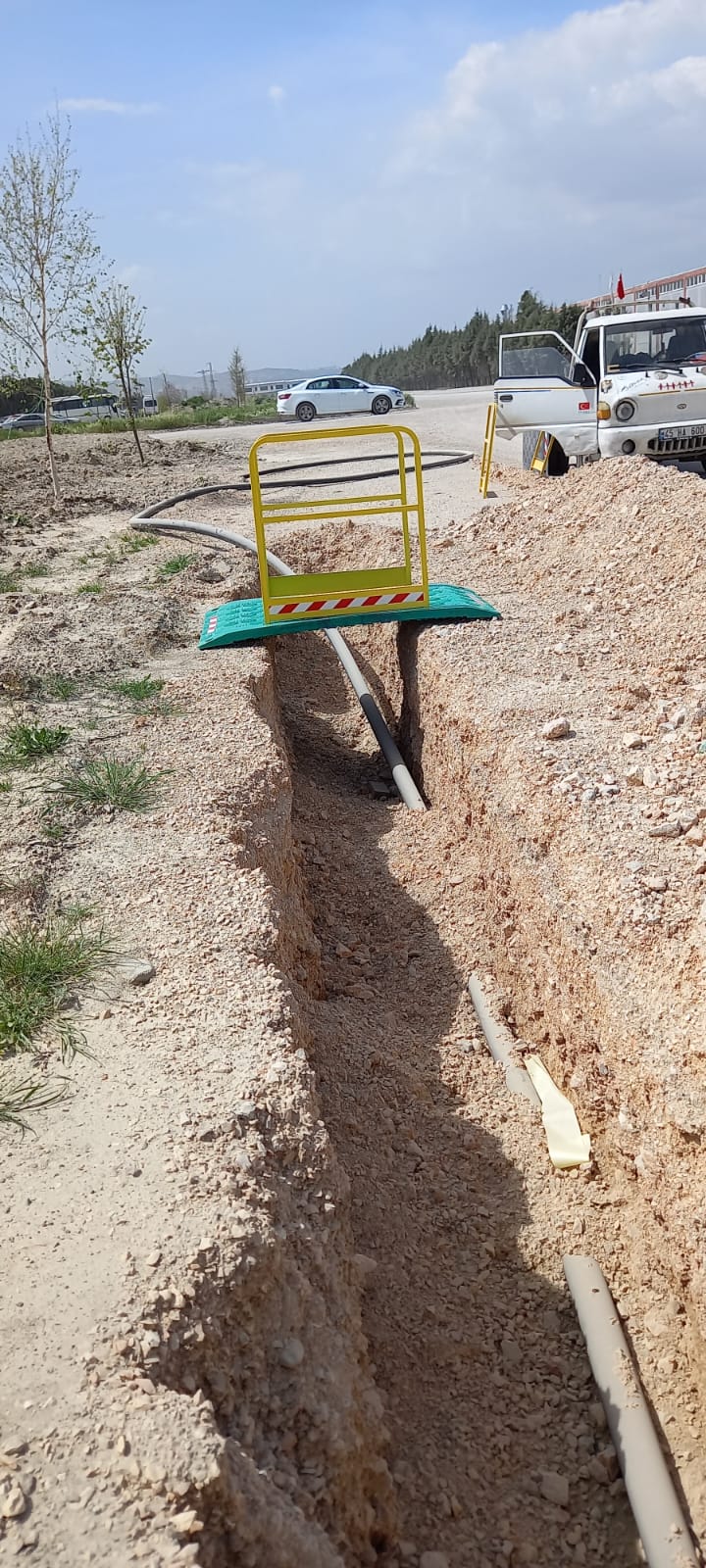

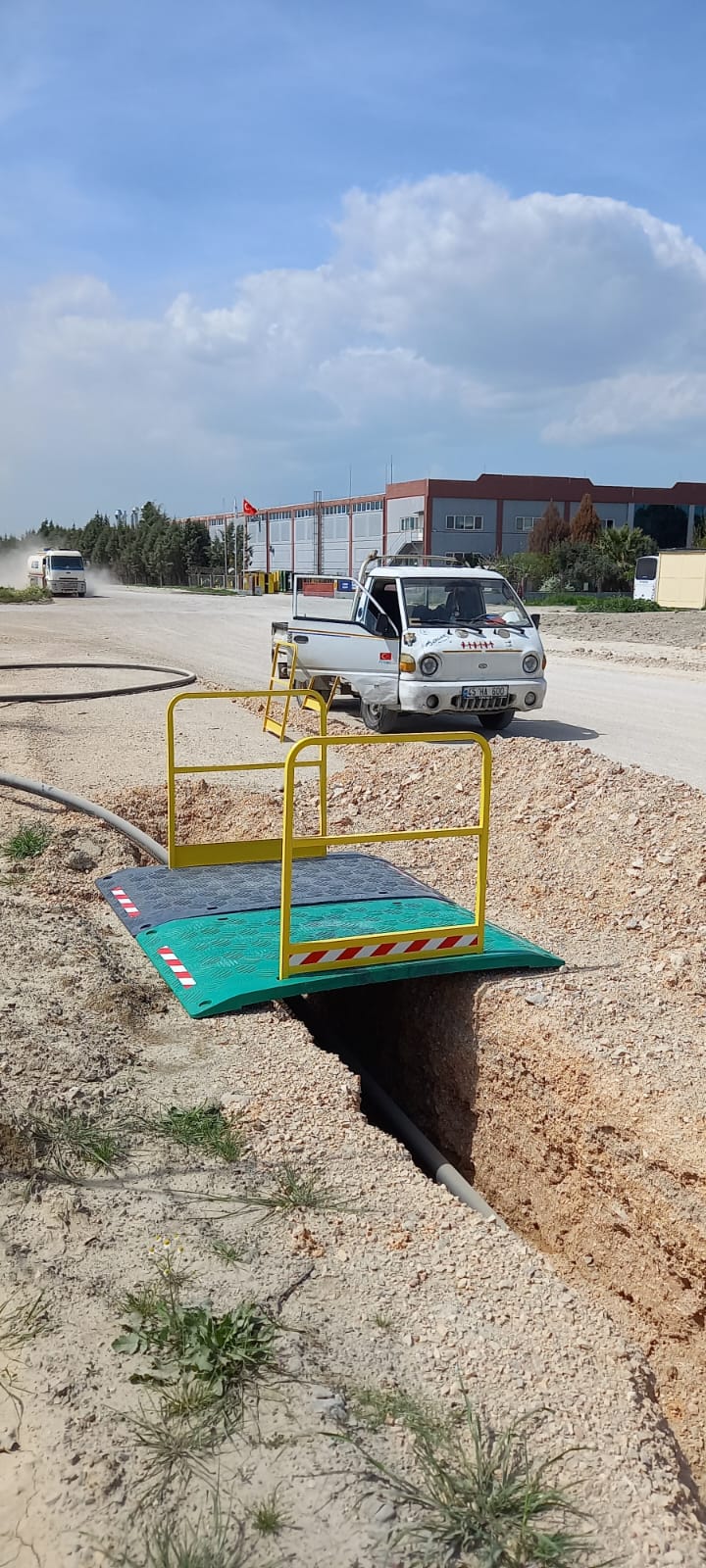

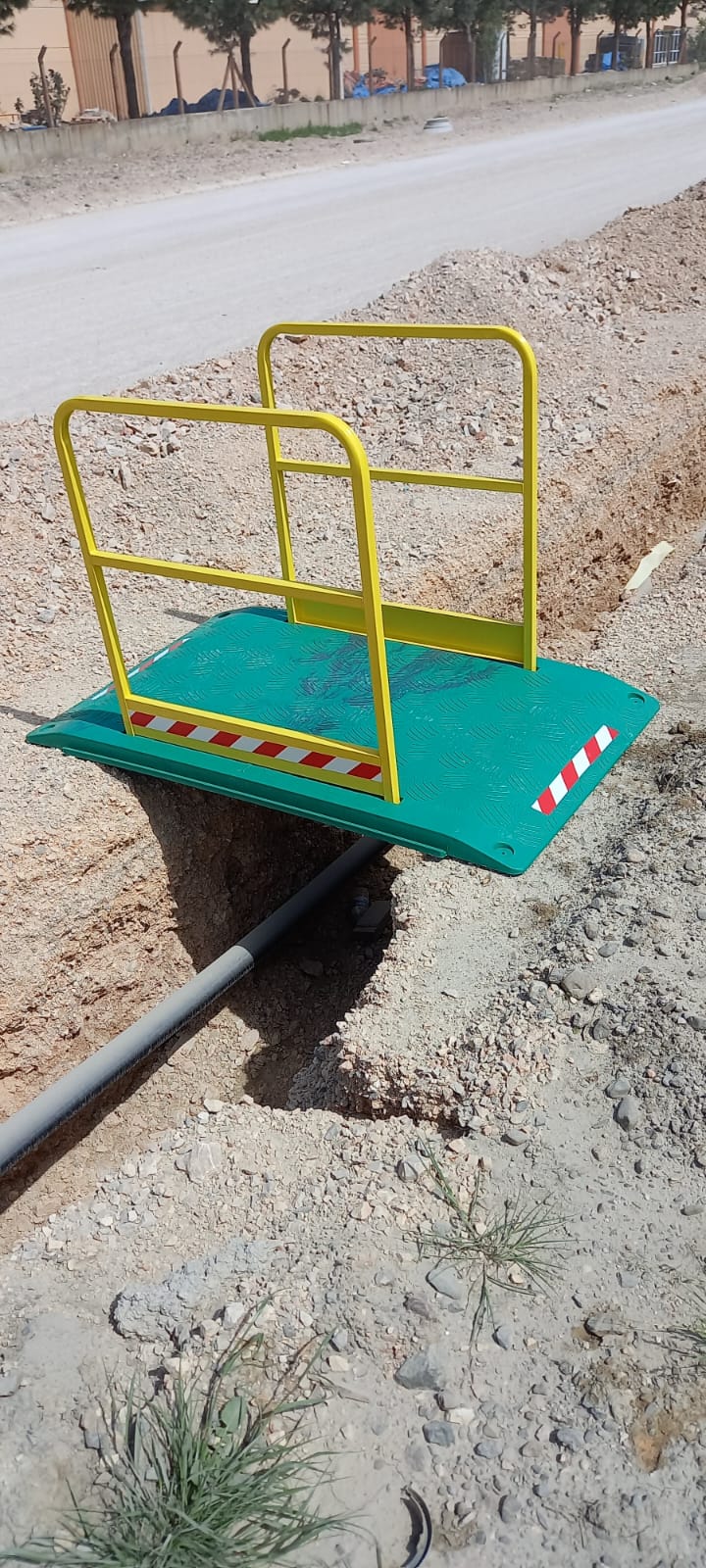

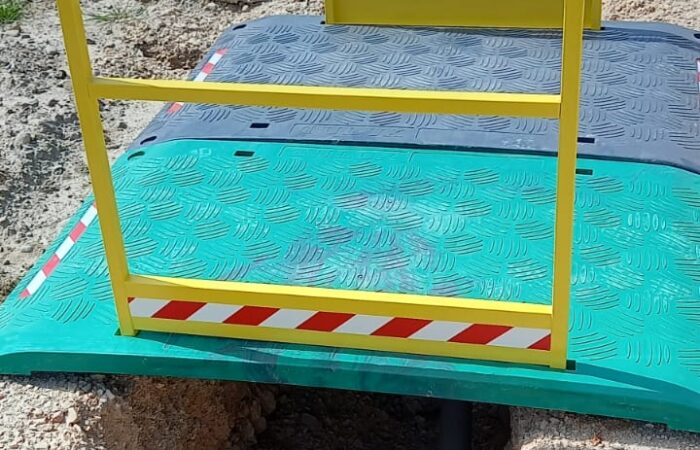

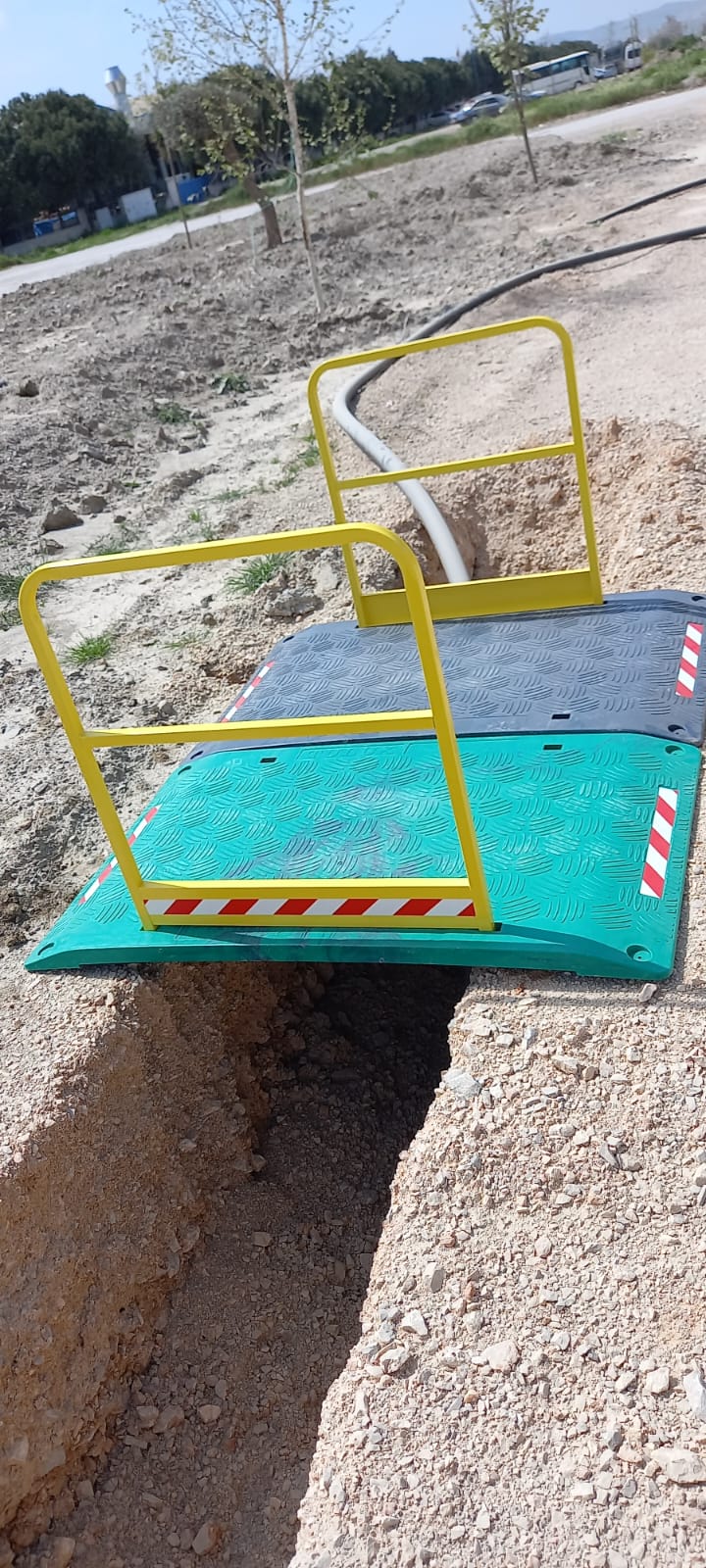

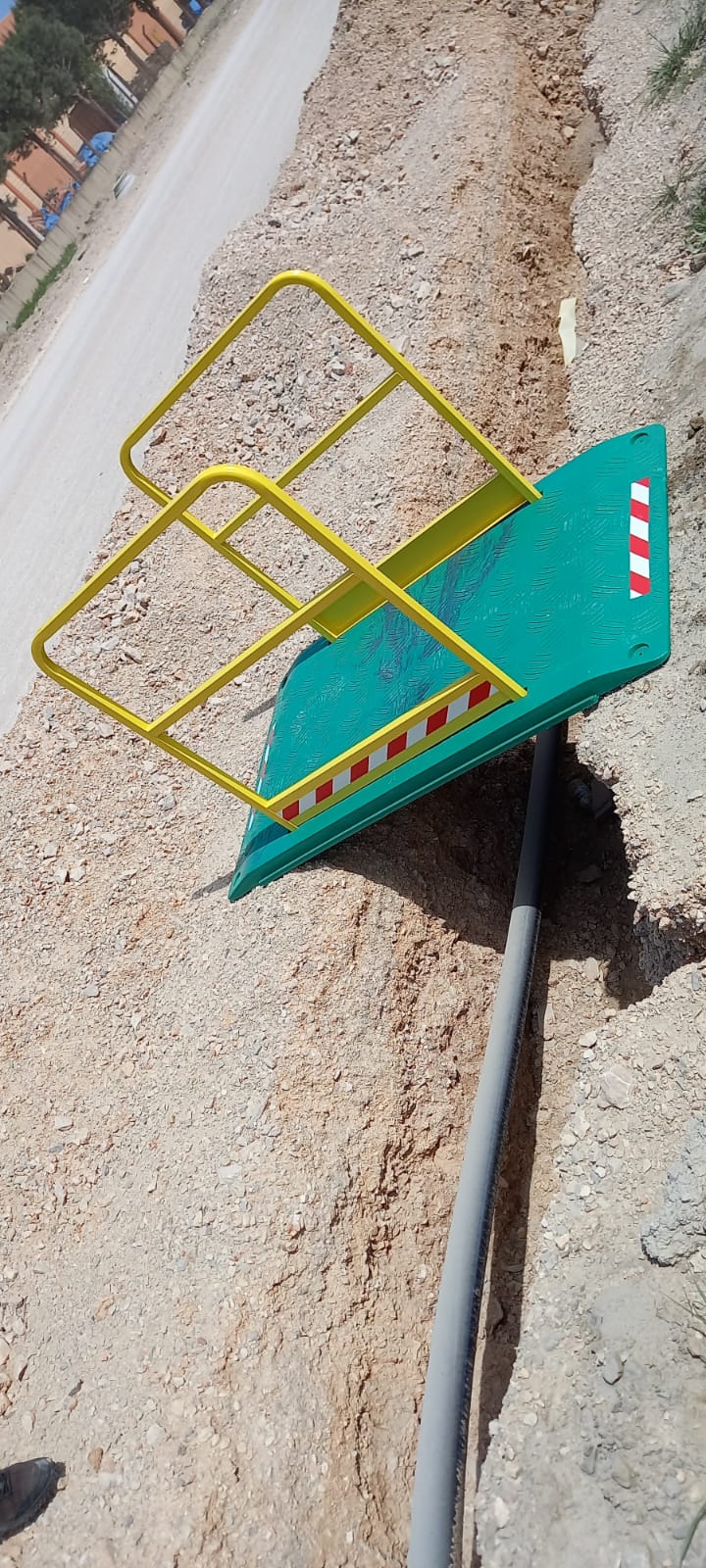

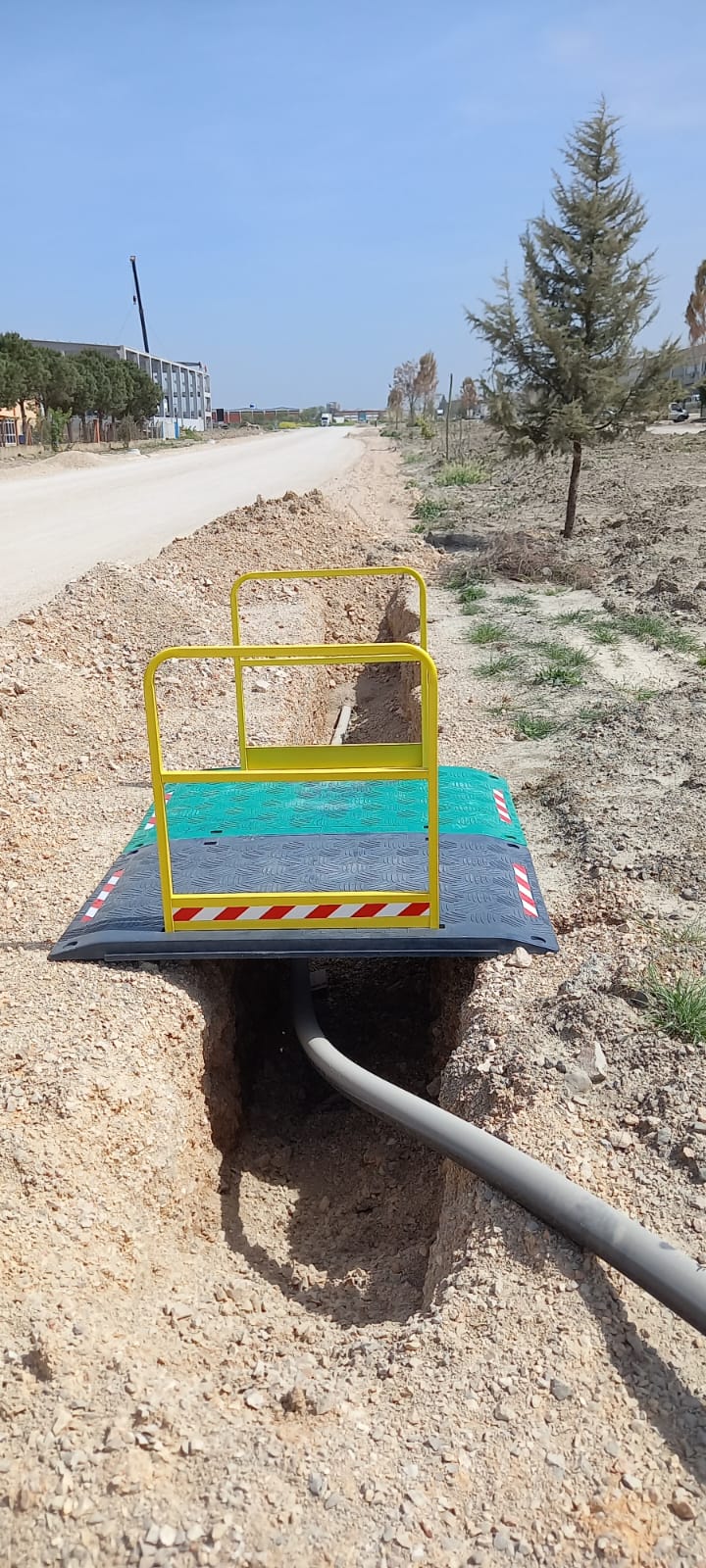

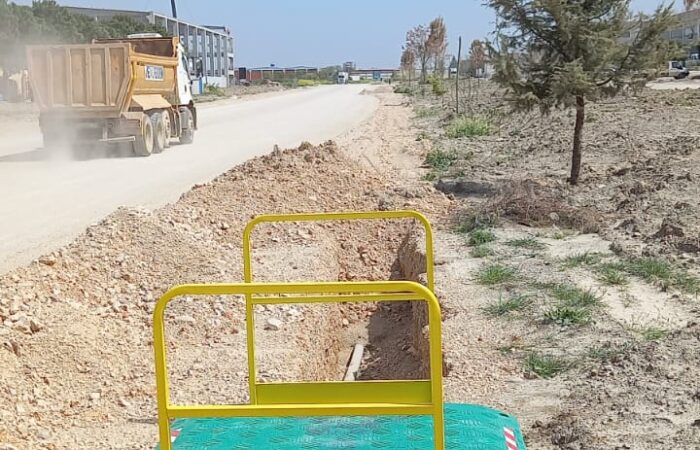

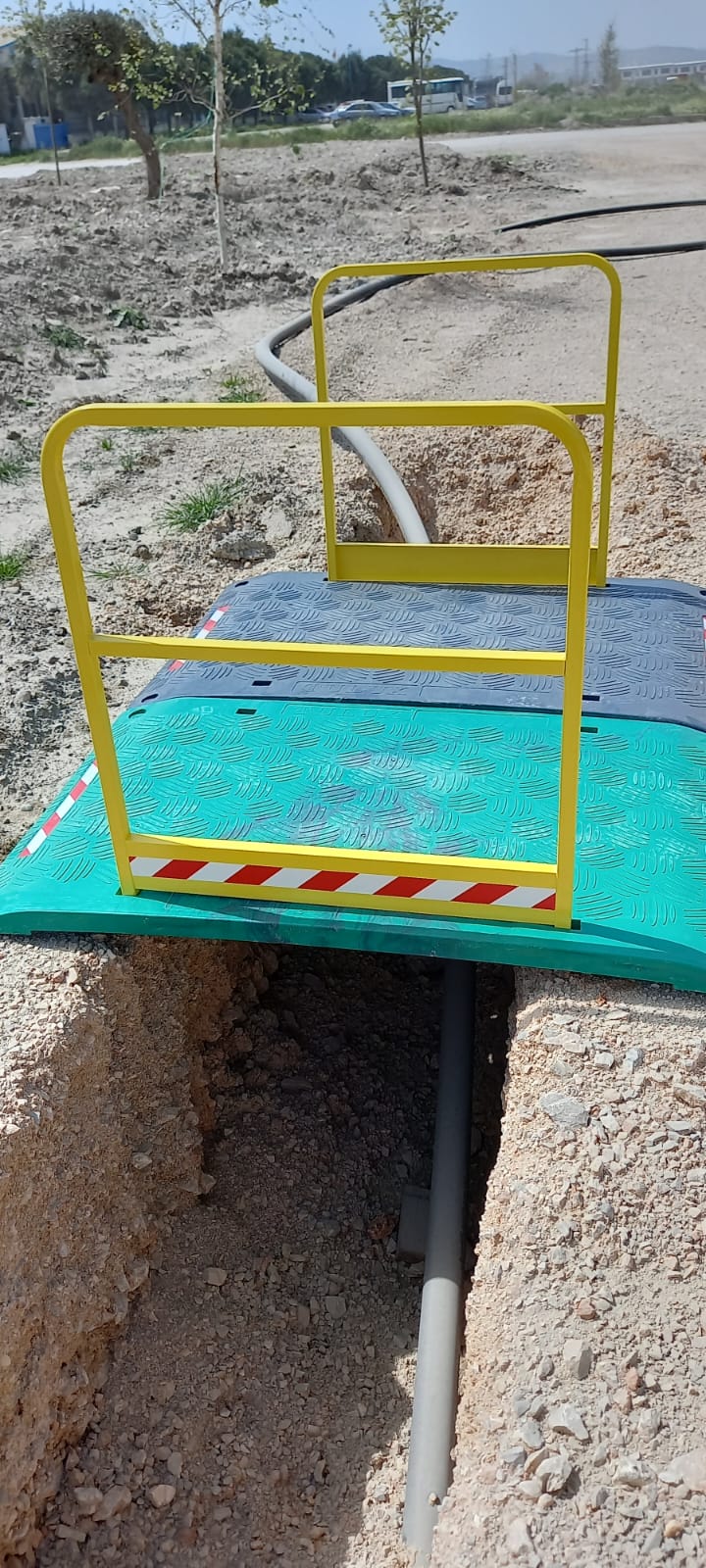

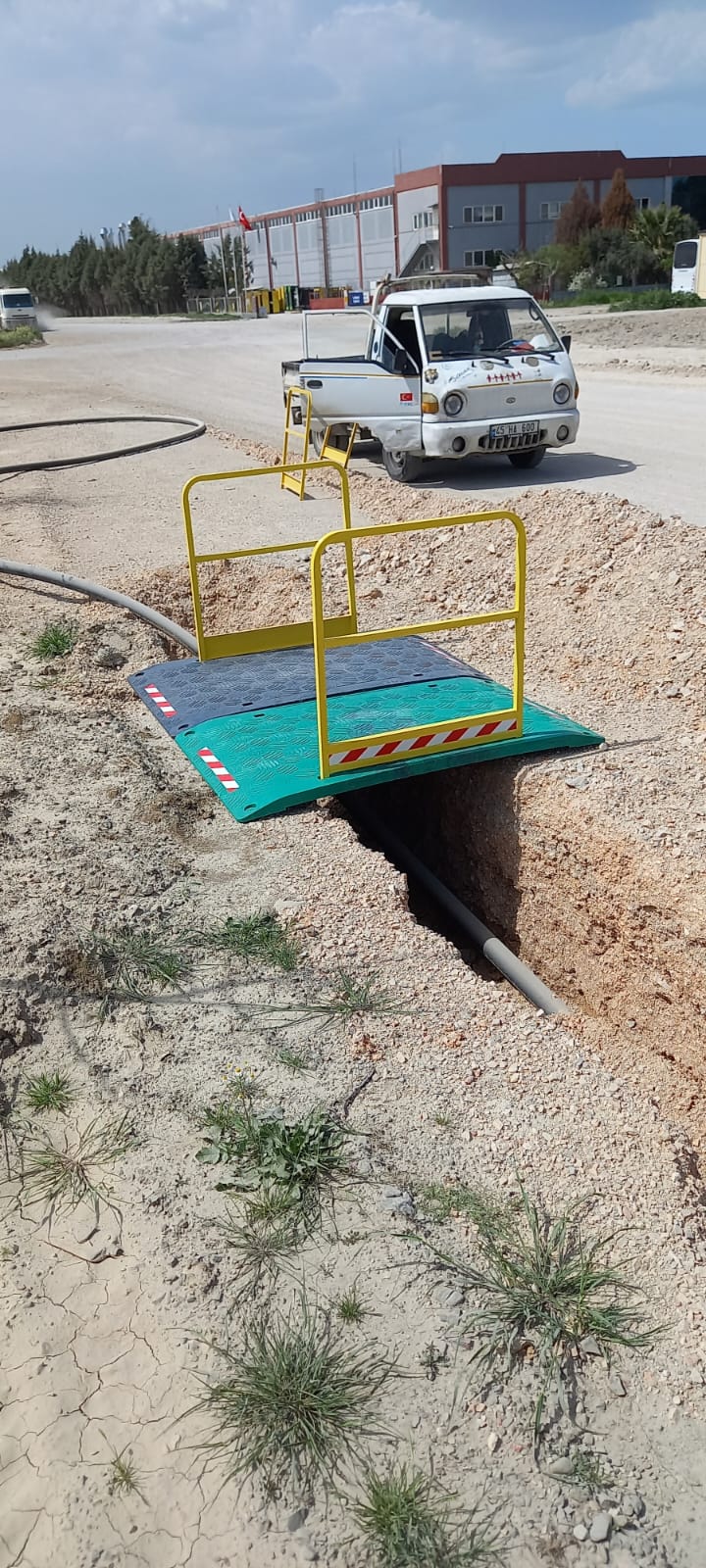

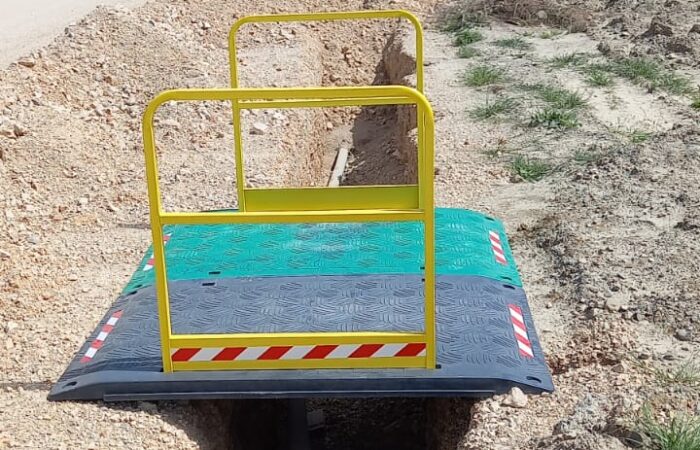

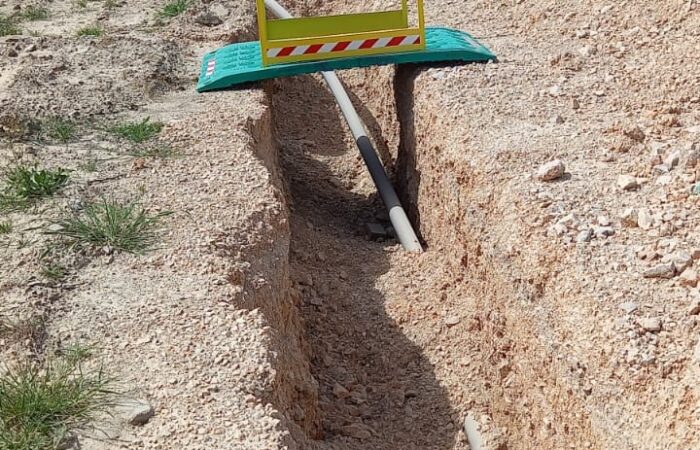

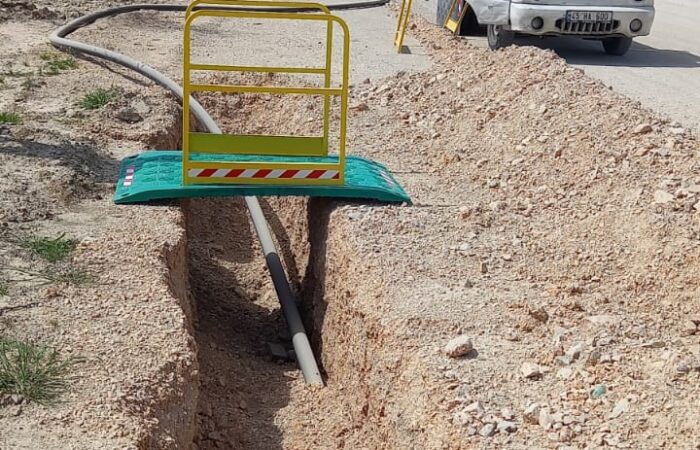

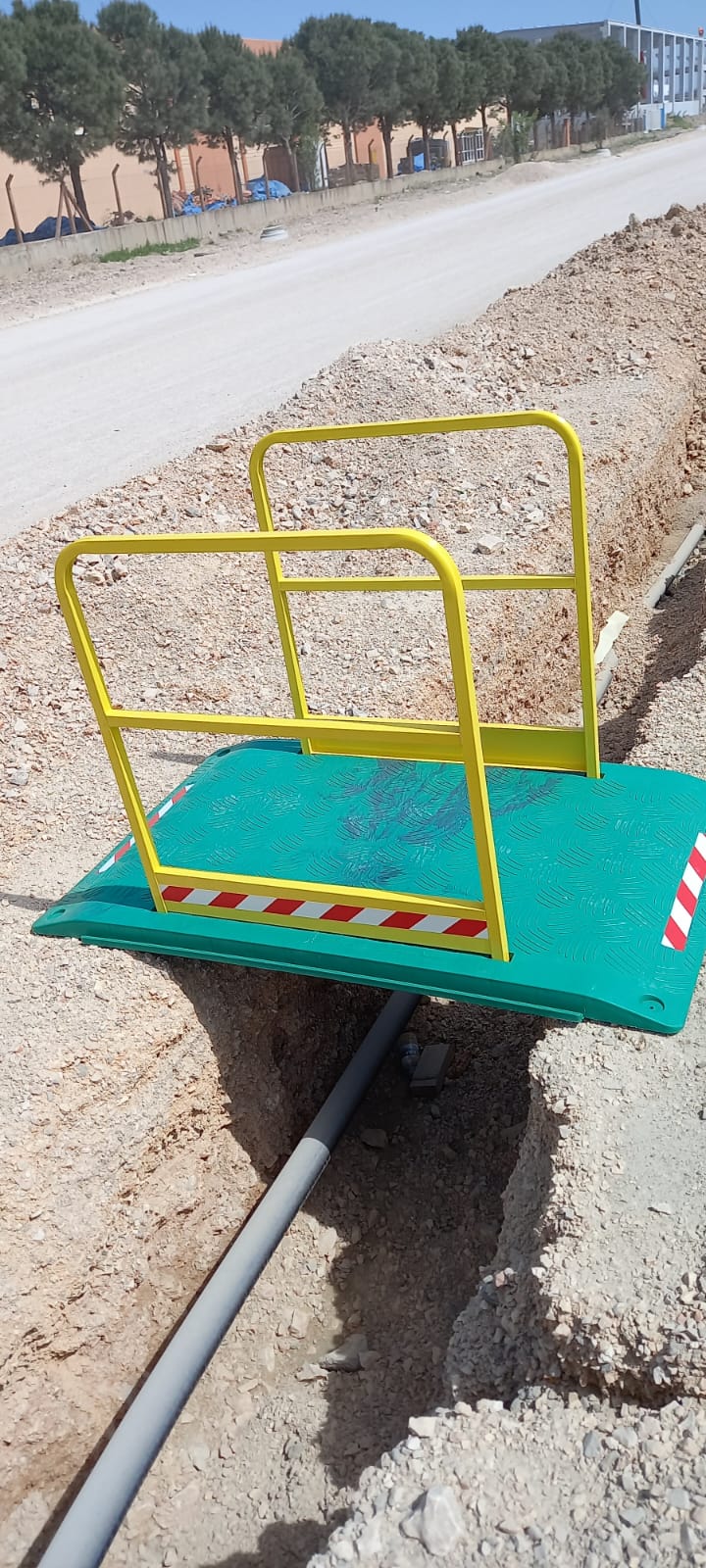

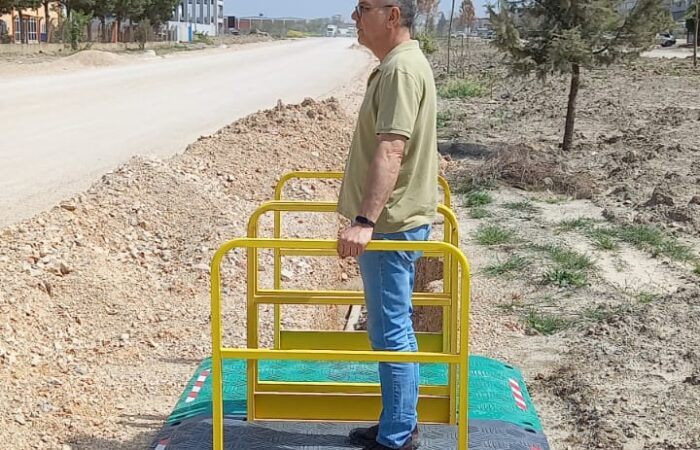

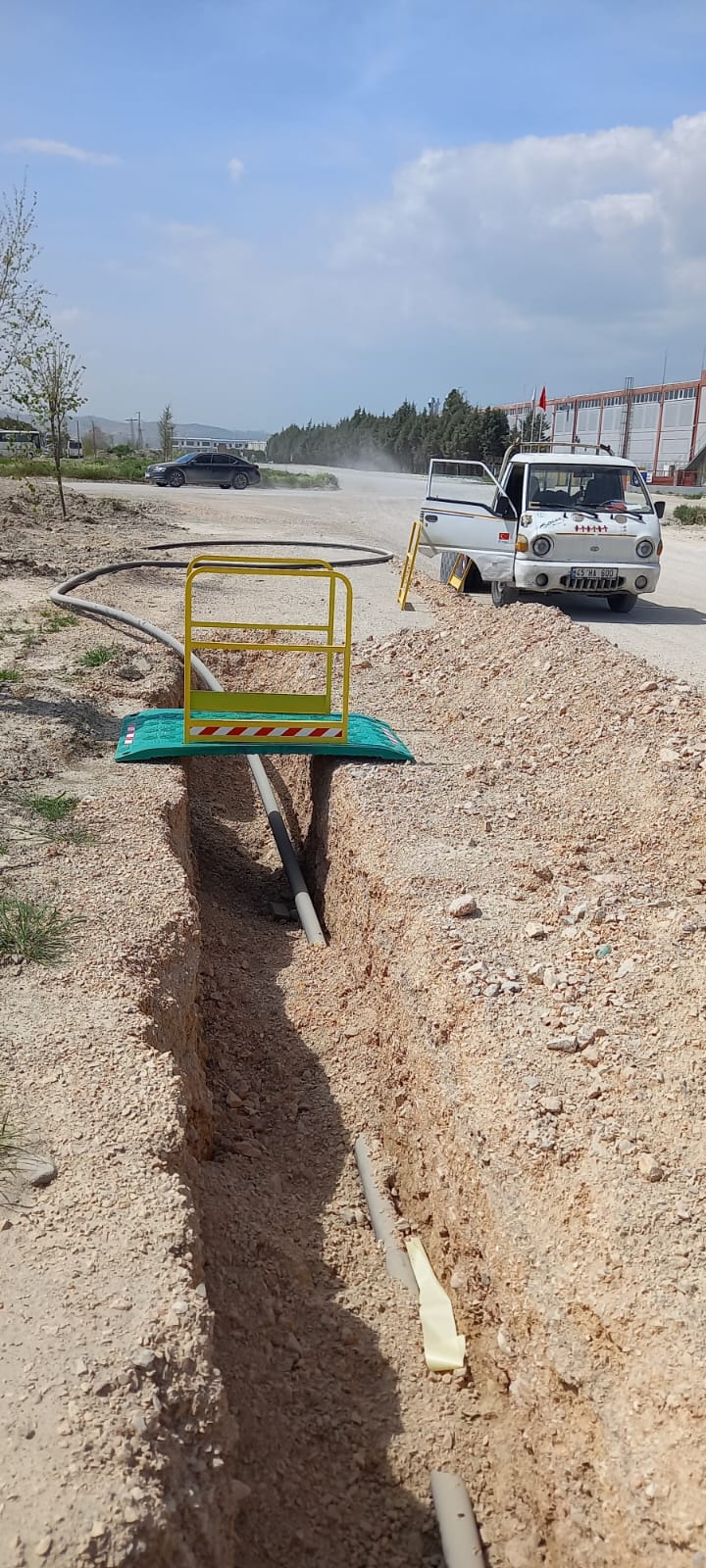

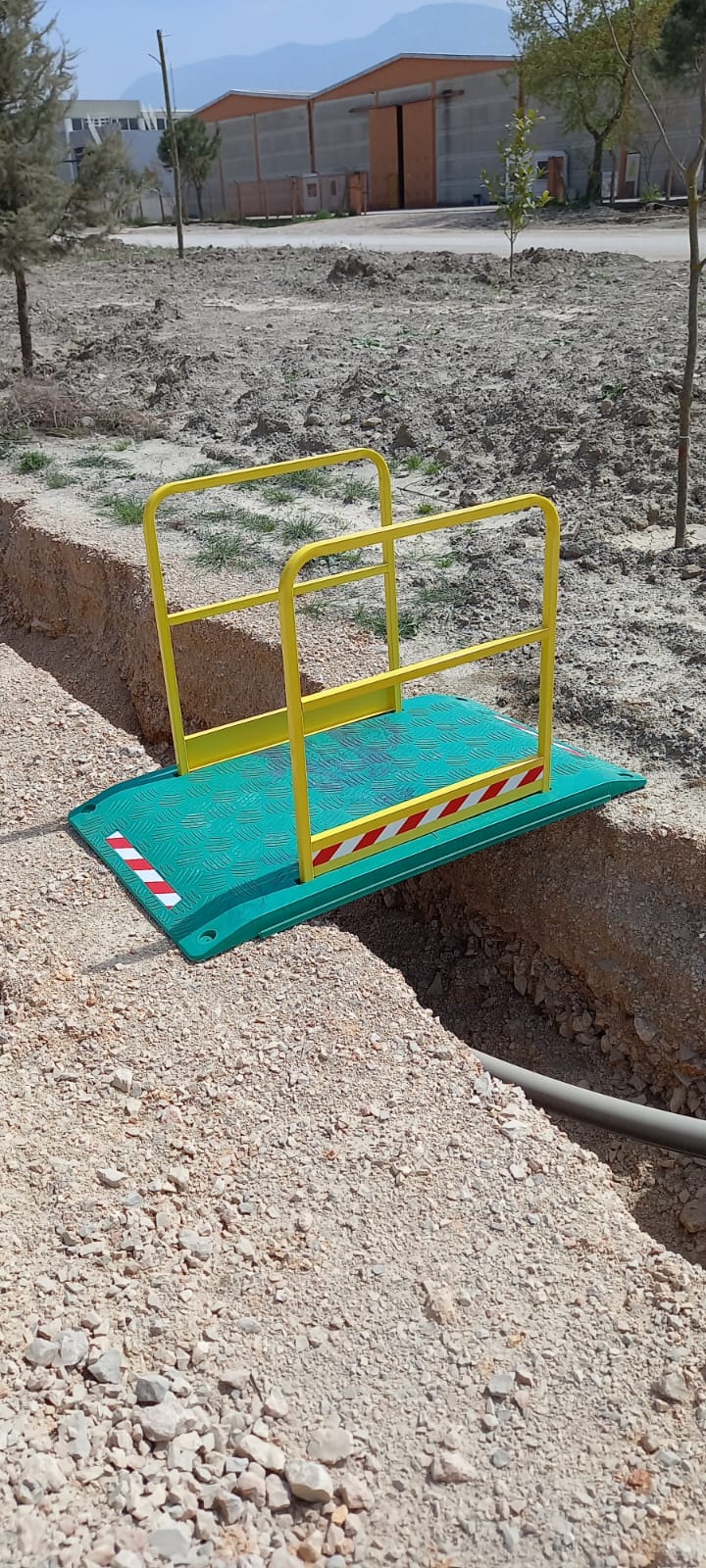

A product prioritizing pedestrian safety during the passage from one side to the other in channels and pits excavated for laying underground utilities (electricity, water, wastewater, natural gas, communication technology cables).

Dimensions

100 cm * 170 cm * 6.5cm

Bridge material

Polypropylene (coploymer)

Weight

19-20kg + 11kg two pieces of handrails

Color

Standard black (can be colored according to customer preference)

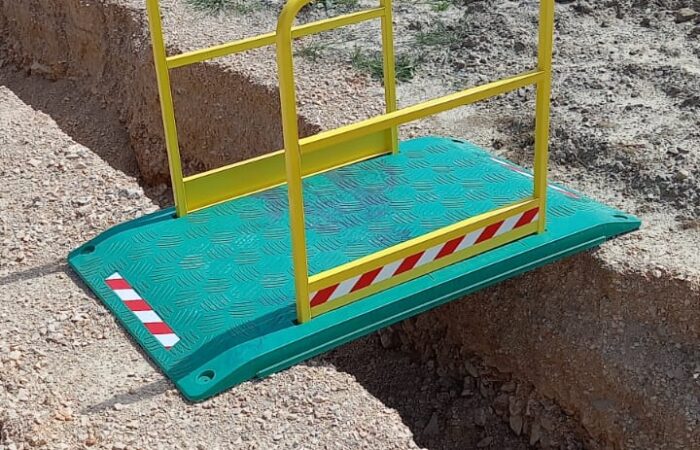

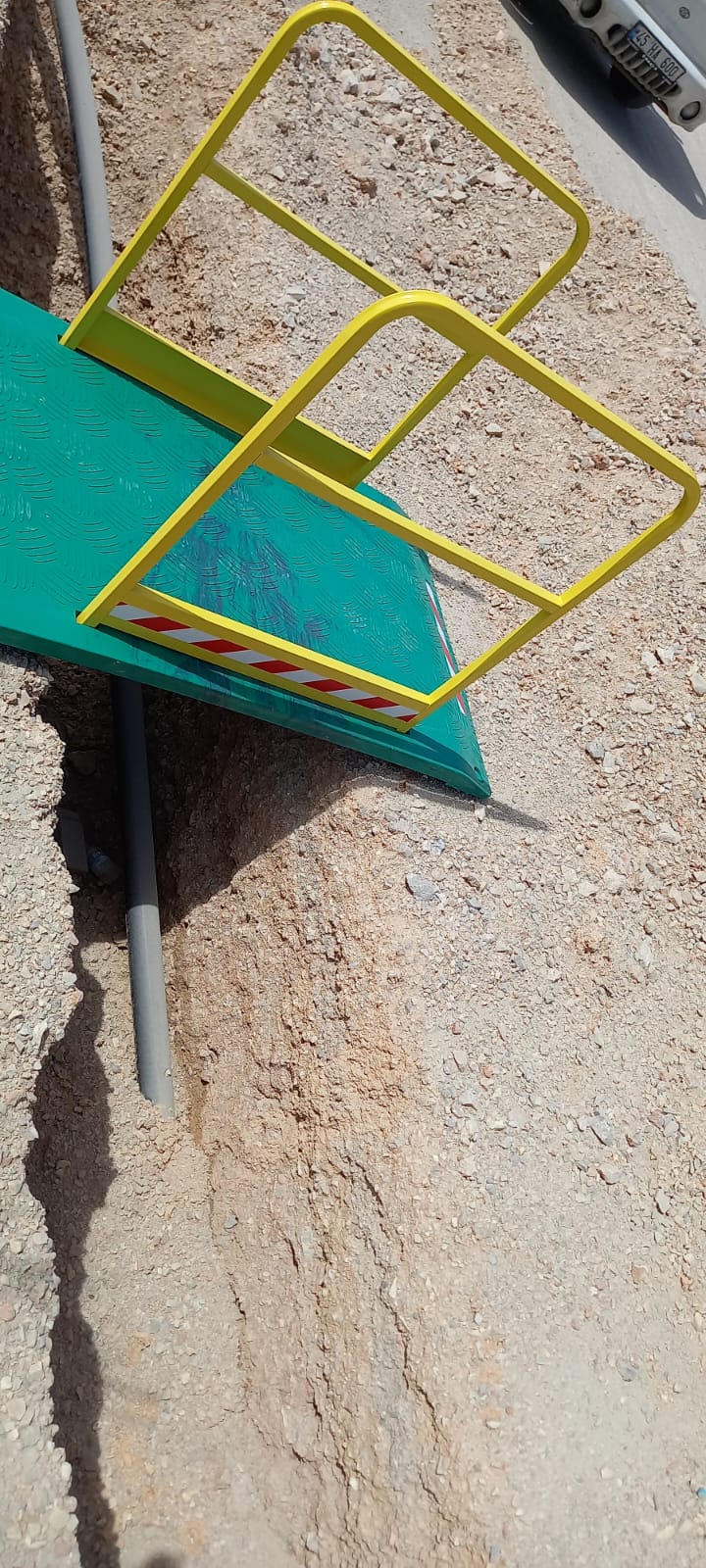

Handrails

Made of box profile and steel sheet, painted with electrostatic powder coating

Handrail Color

Standard yellow (can be colored according to customer preference)

Product Features

  • Our product is manufactured from first-grade copolymer material, which is designed in-house and produced using our own molds and facilities.
  • Our product is designed to adapt to seasonal changes and can be used within a temperature range of -20°C to +45°C.

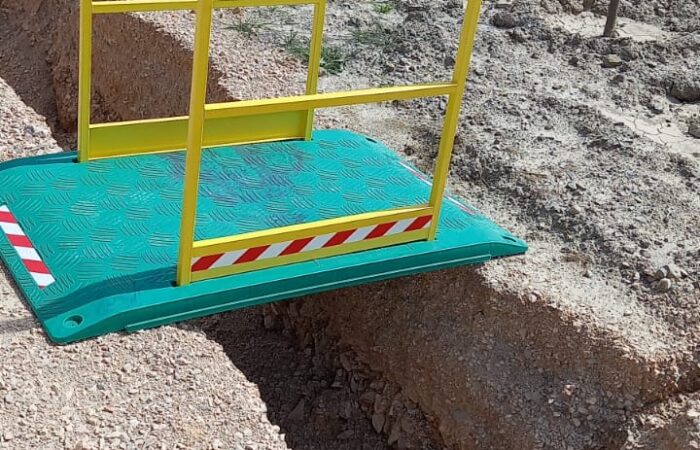

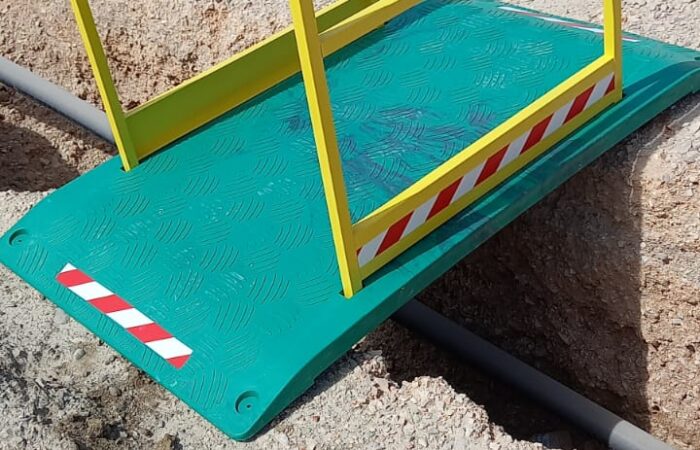

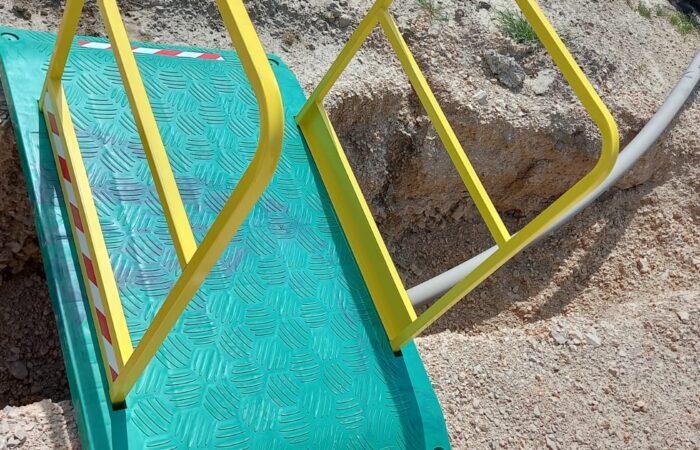

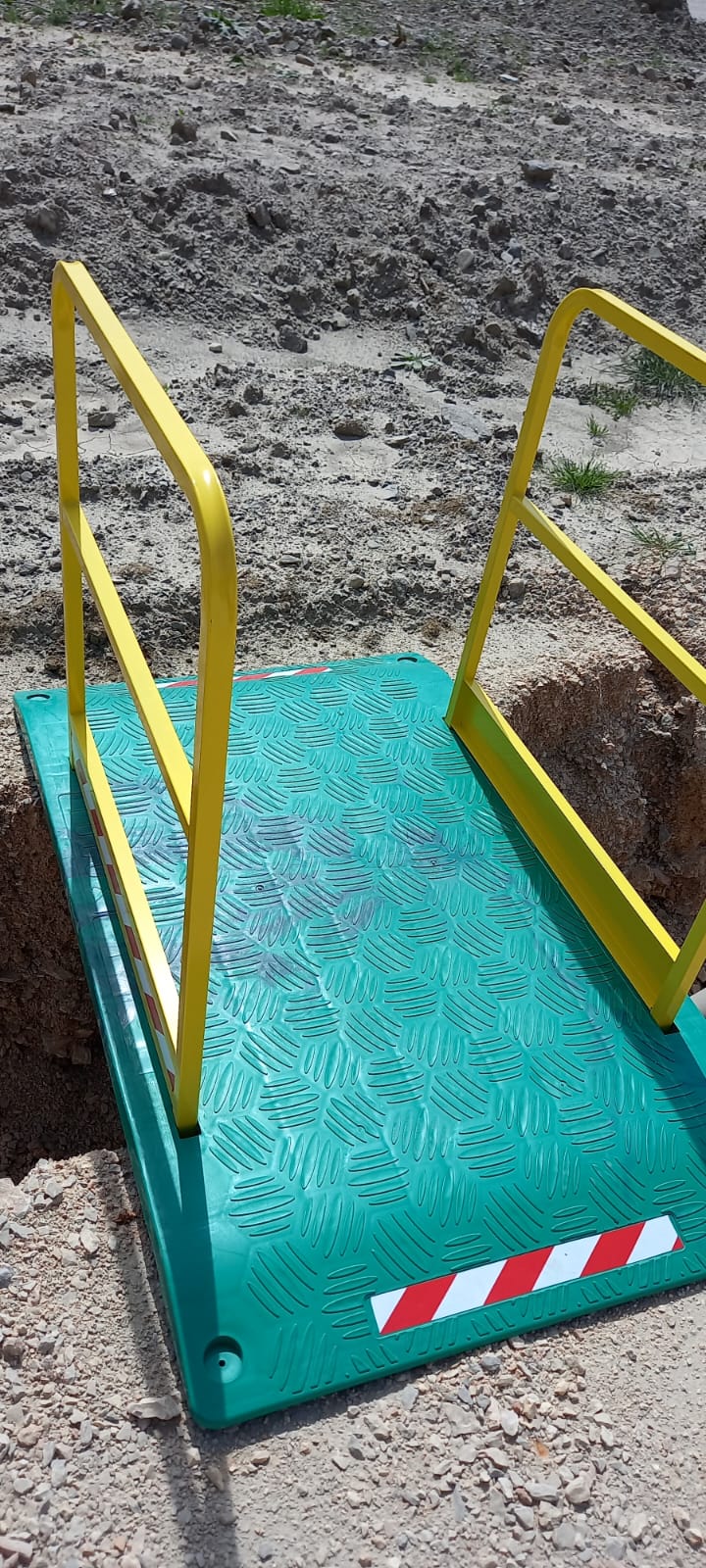

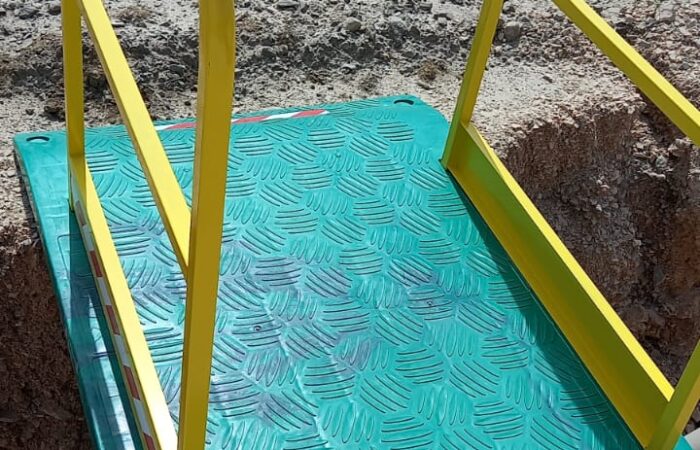

  • The walking surface is specially designed to prevent water pooling and freezing in colder climates, minimizing the risk of falls and injuries for pedestrians during snow and rain, ensuring their safety at the highest level.

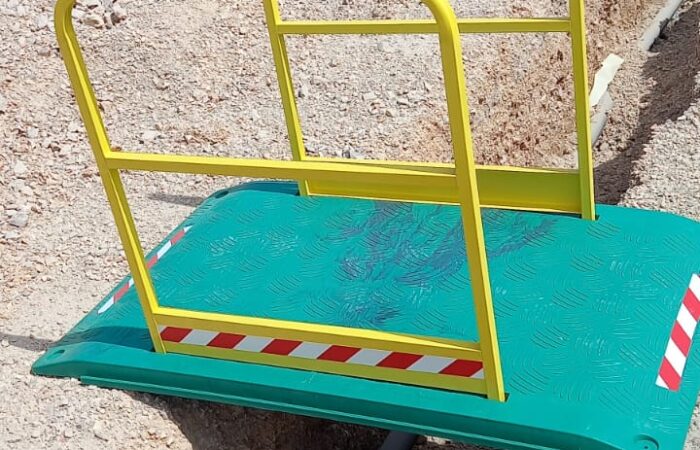

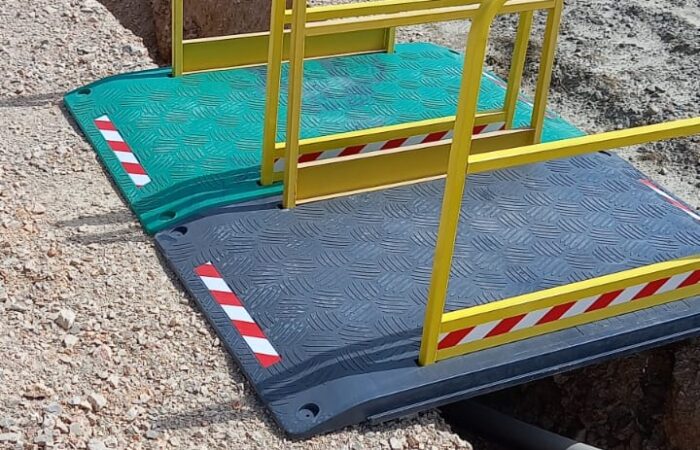

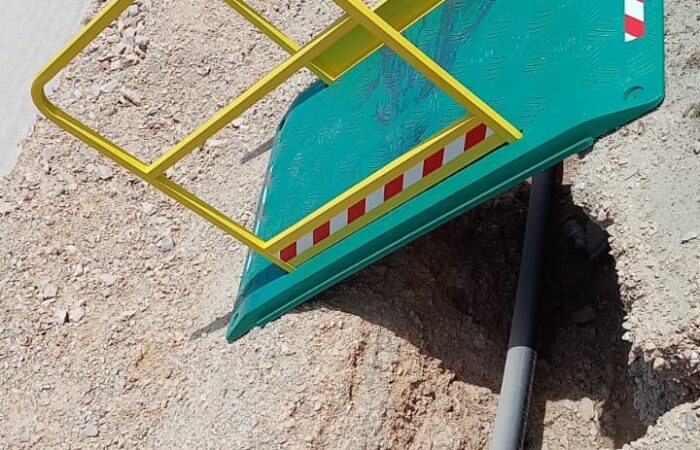

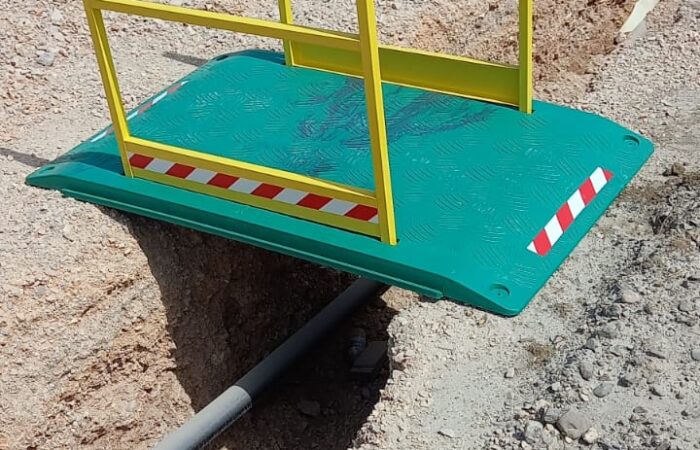

  • To increase visibility both day and night, reflective bands are placed on the bridge and handrails.

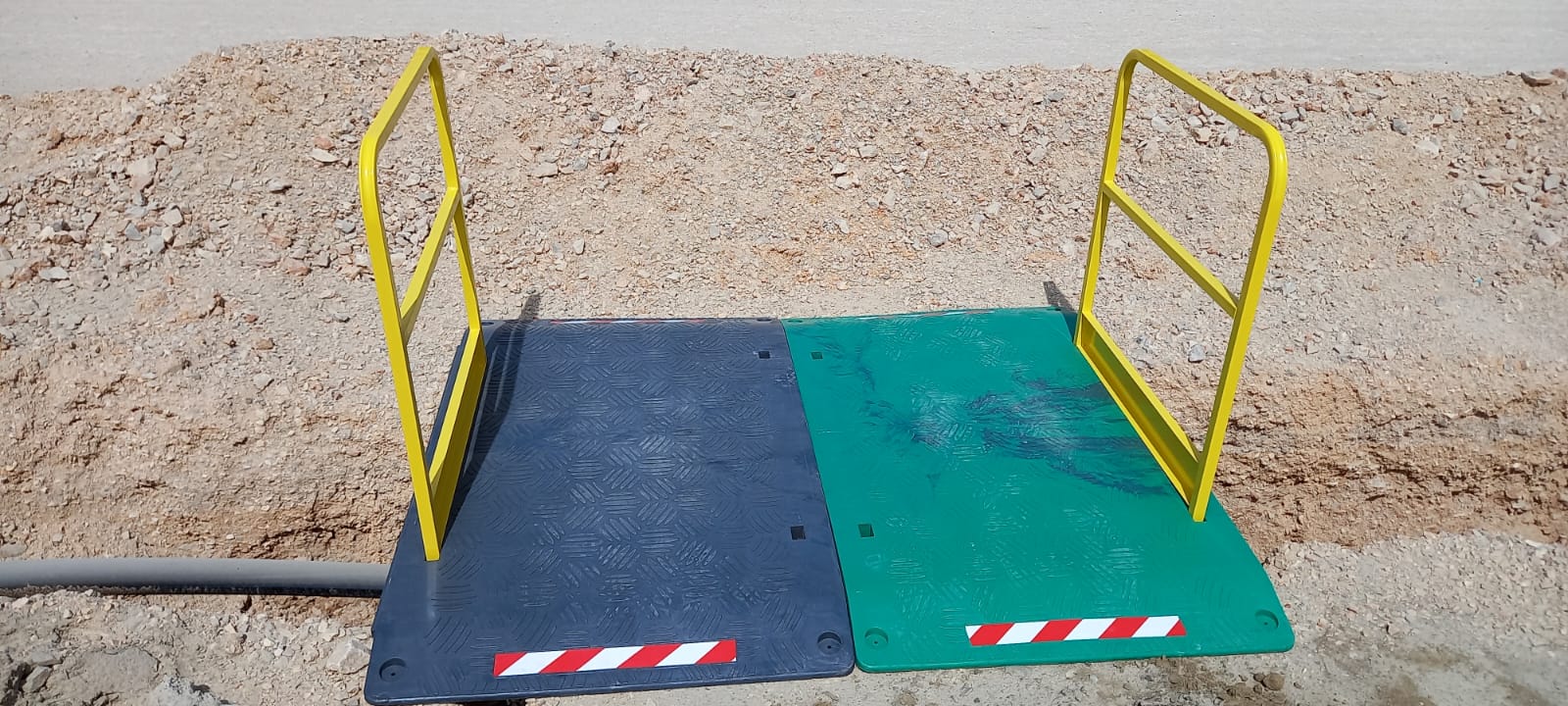

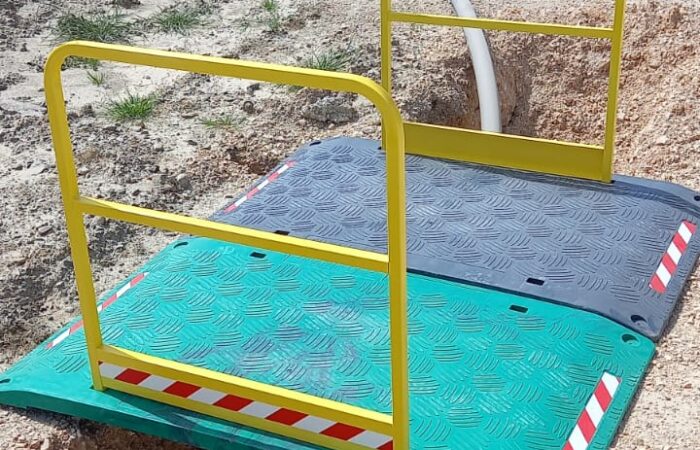

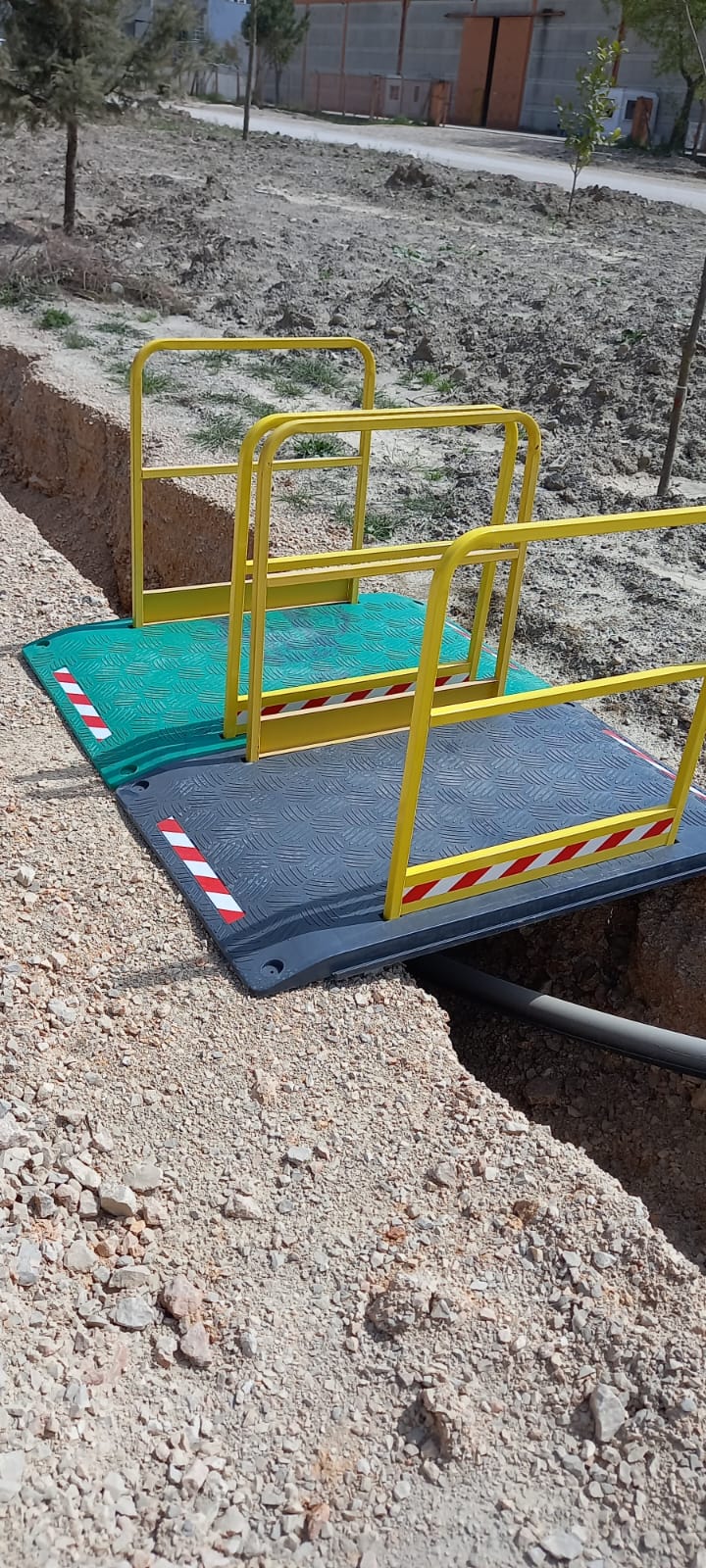

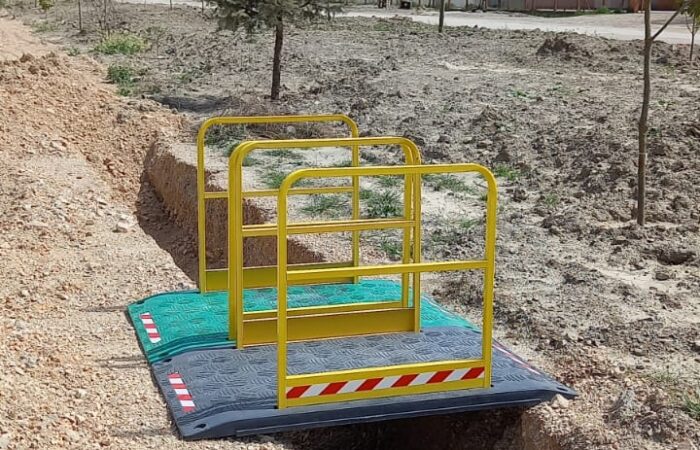

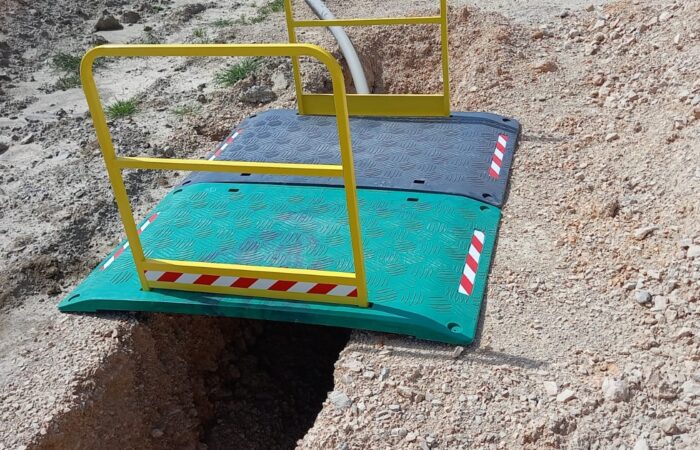

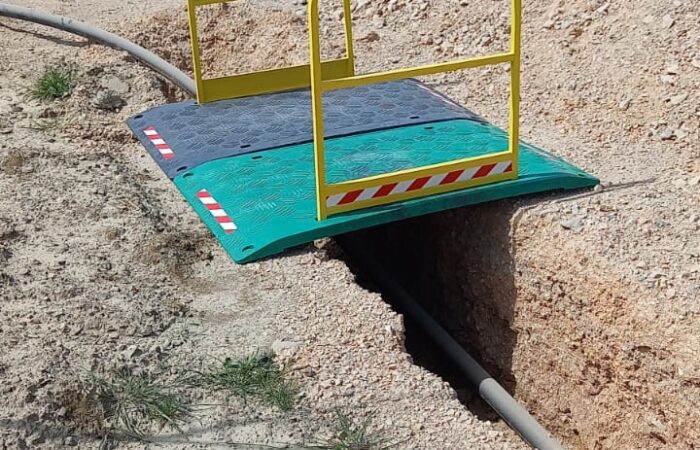

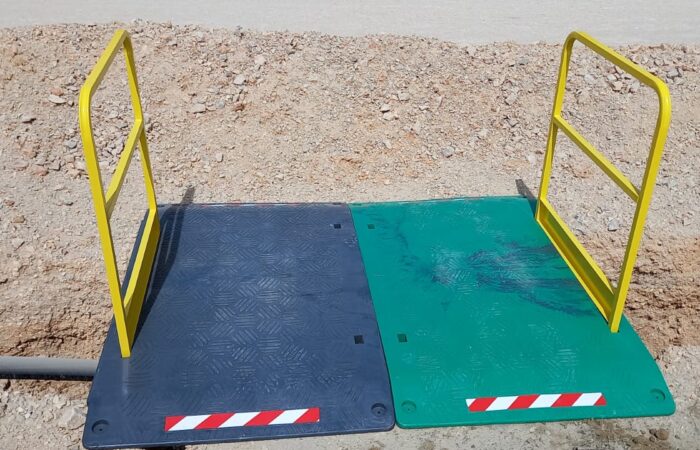

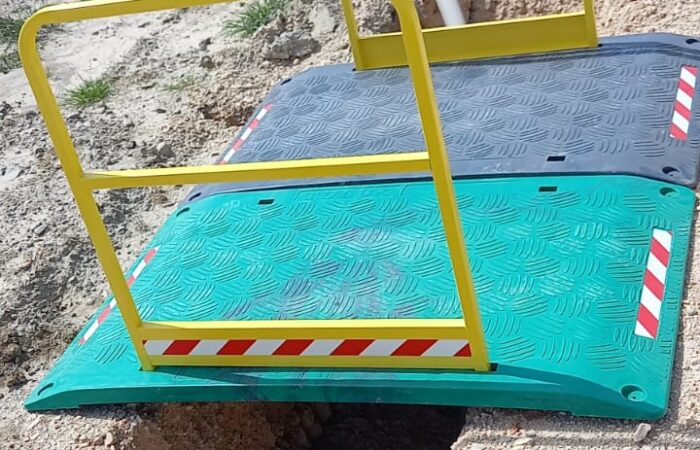

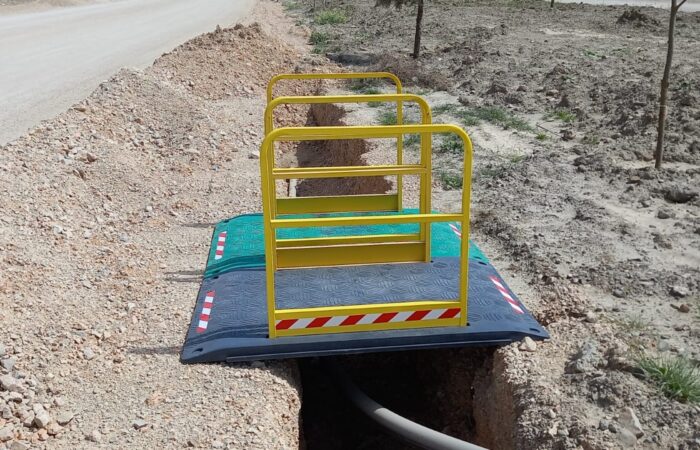

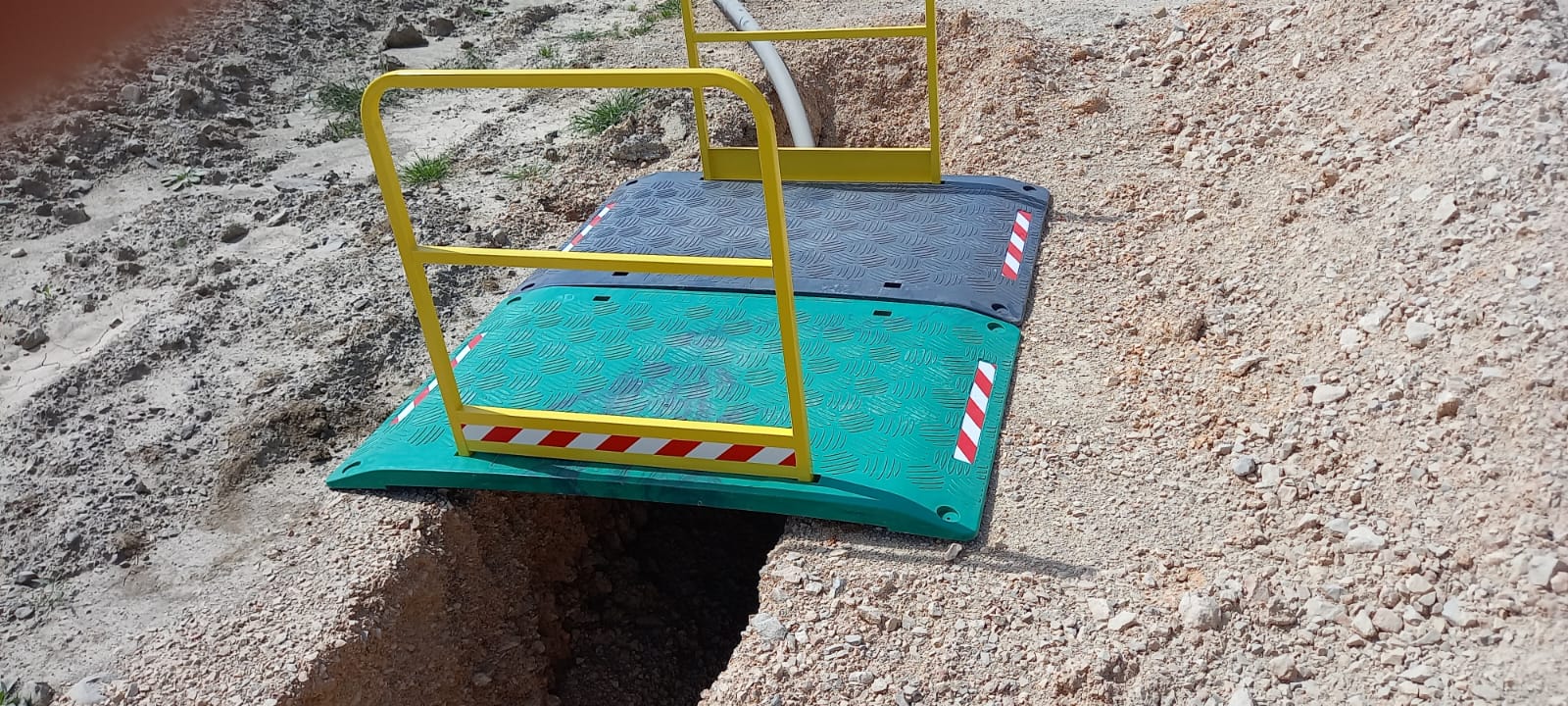

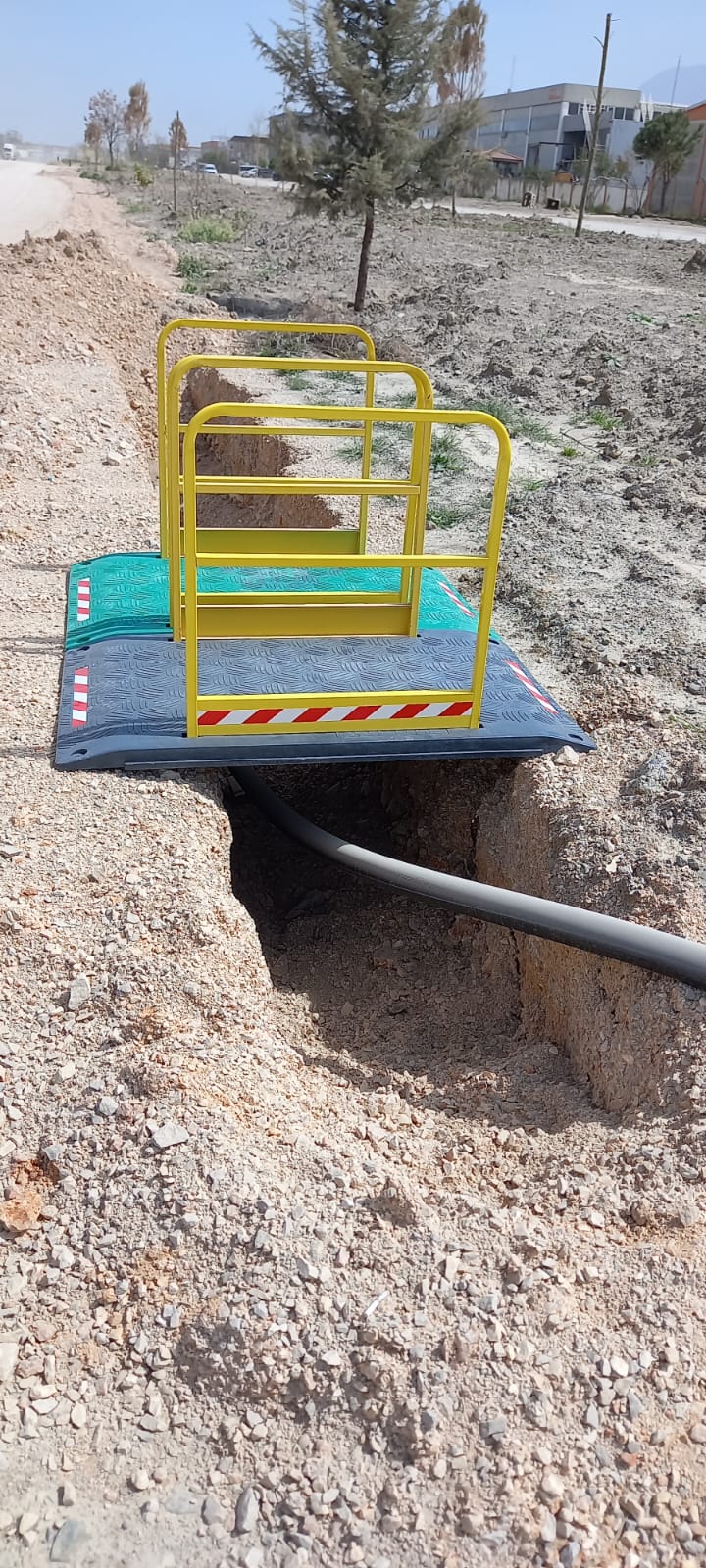

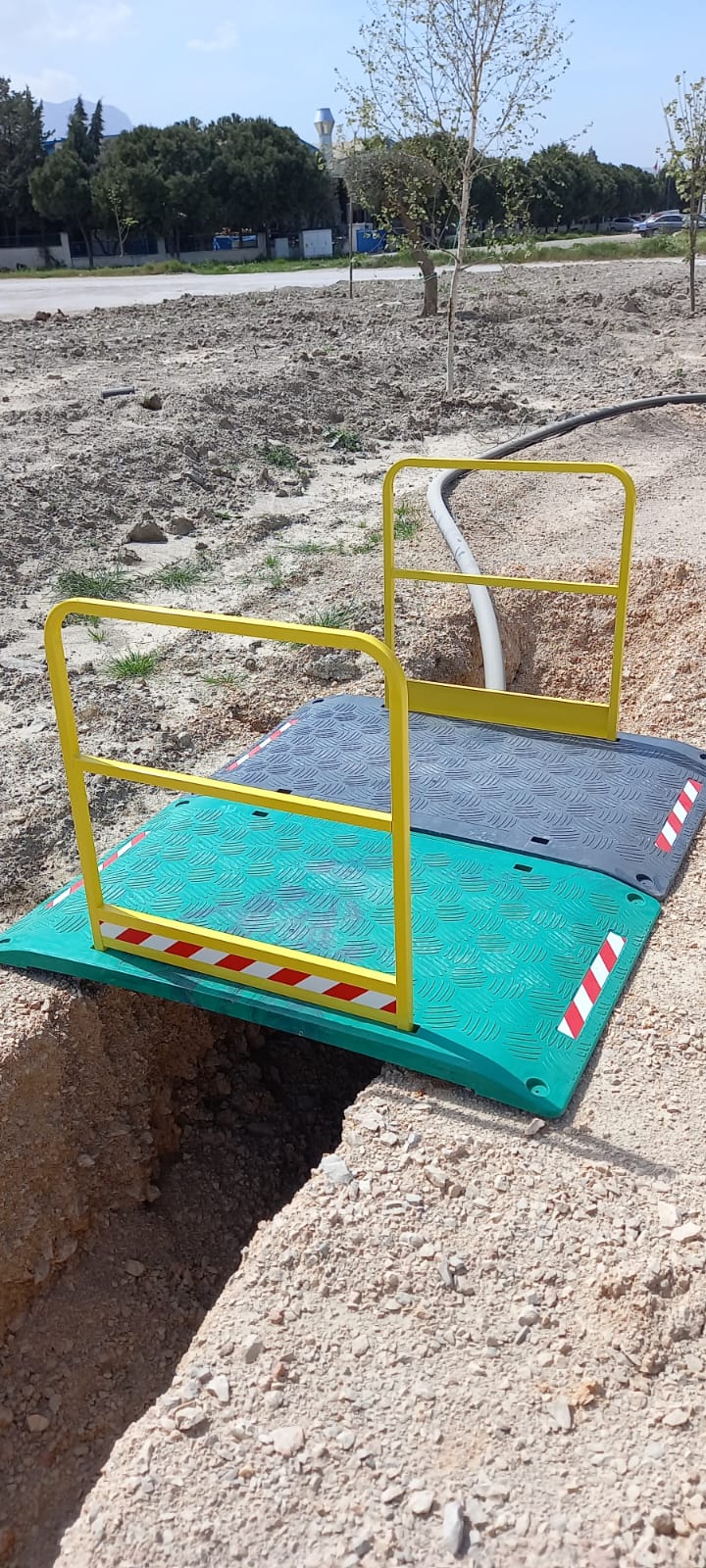

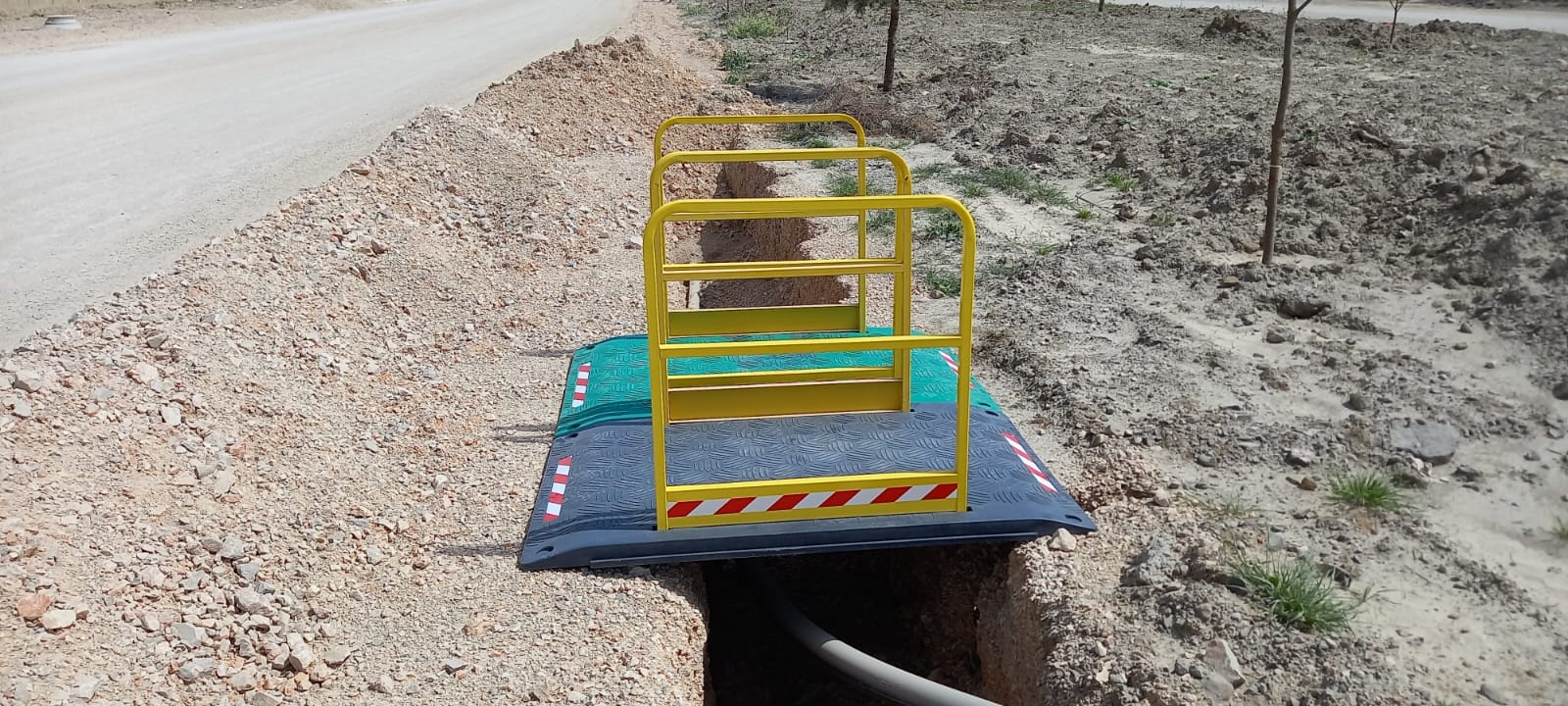

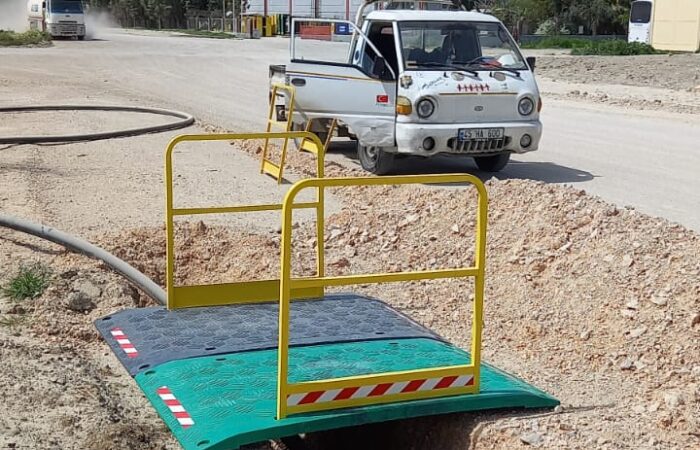

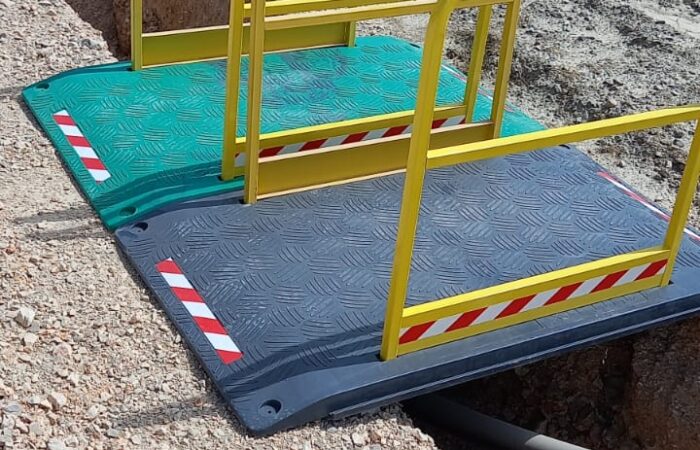

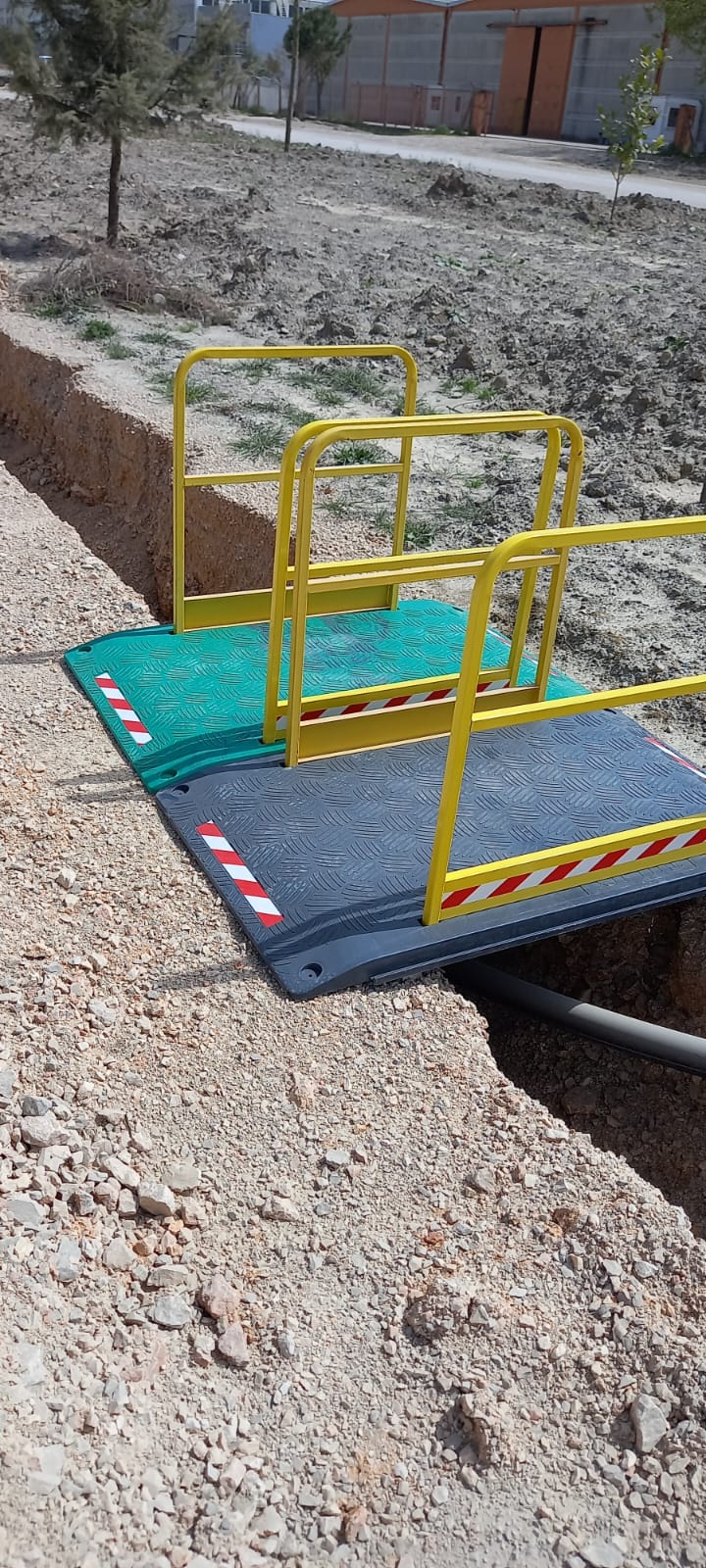

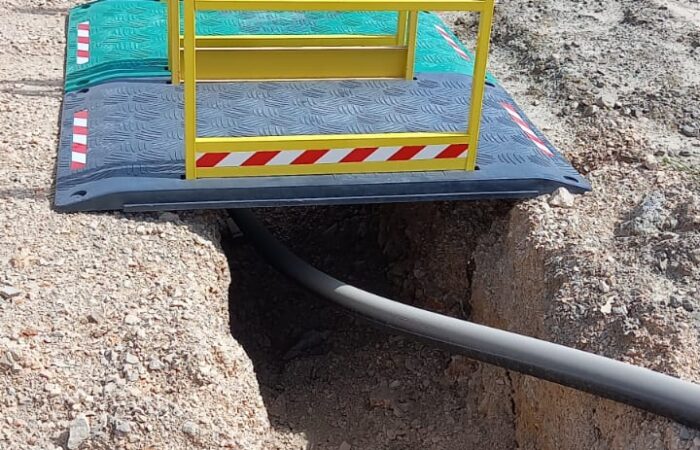

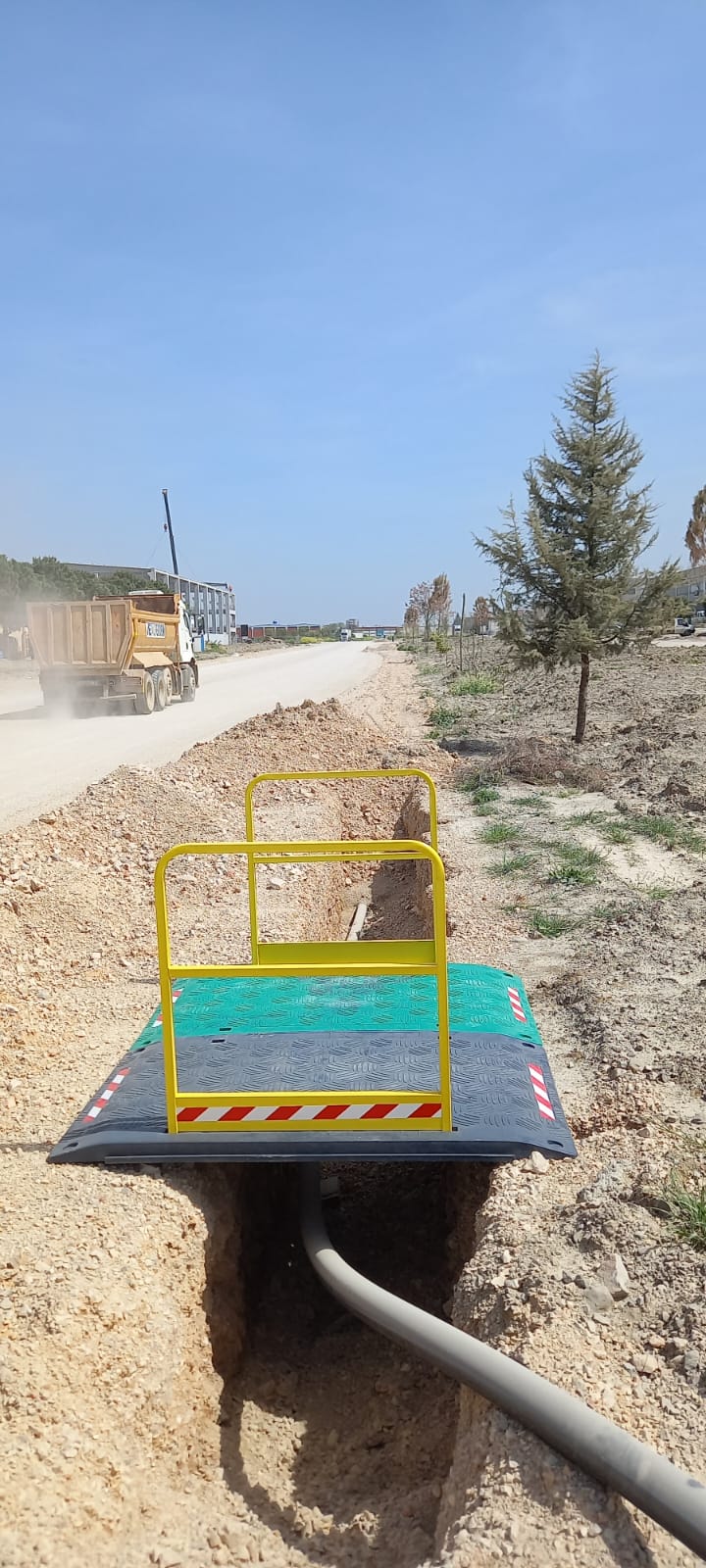

  • Arranging them side by side, wider passage distances can be created.
  • They are designed for easy assembly and disassembly, stackability, and portability.
  • They are designed to be suitable for anchoring to the ground when necessary.
